Vehicular Antennas

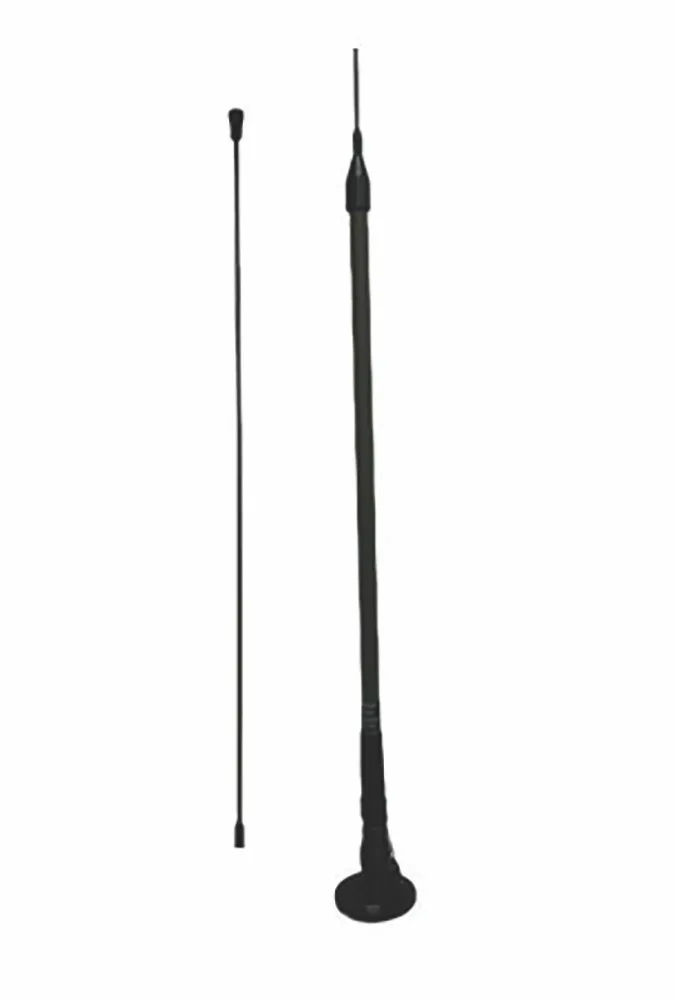

WB-3512BN/VRC
98" (2.4 m) VHF, UHF, BROADBAND WIDEBAND ANTENNA w/BNC ADAPTER | 30-512 MHz
- Bands
-
- Broadband
- UHF
- VHF
Overview
Shakespeare® WB-3512BN/VRC is a wide broadband vehicular antenna with BNC adapter engineered for reliable VHF and UHF communications across a wide 30–512 MHz frequency range. Designed for demanding military and tactical applications, this versatile antenna provides broad frequency coverage in a single monopole configuration, supporting multiple communication requirements while reducing the need for separate antennas.
Specifications
| Frequency Range | 30 - 512 MHz |
|---|---|

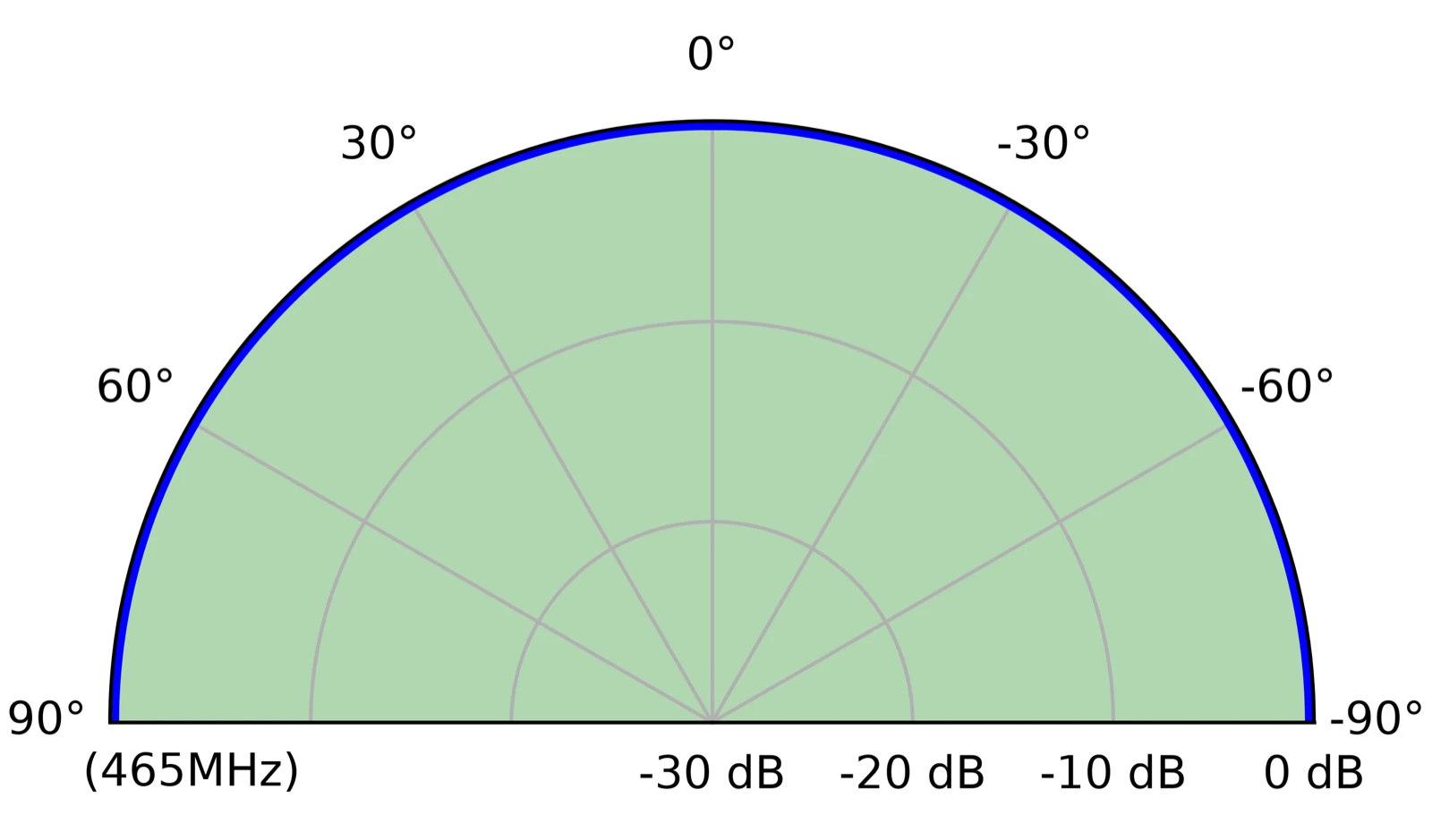

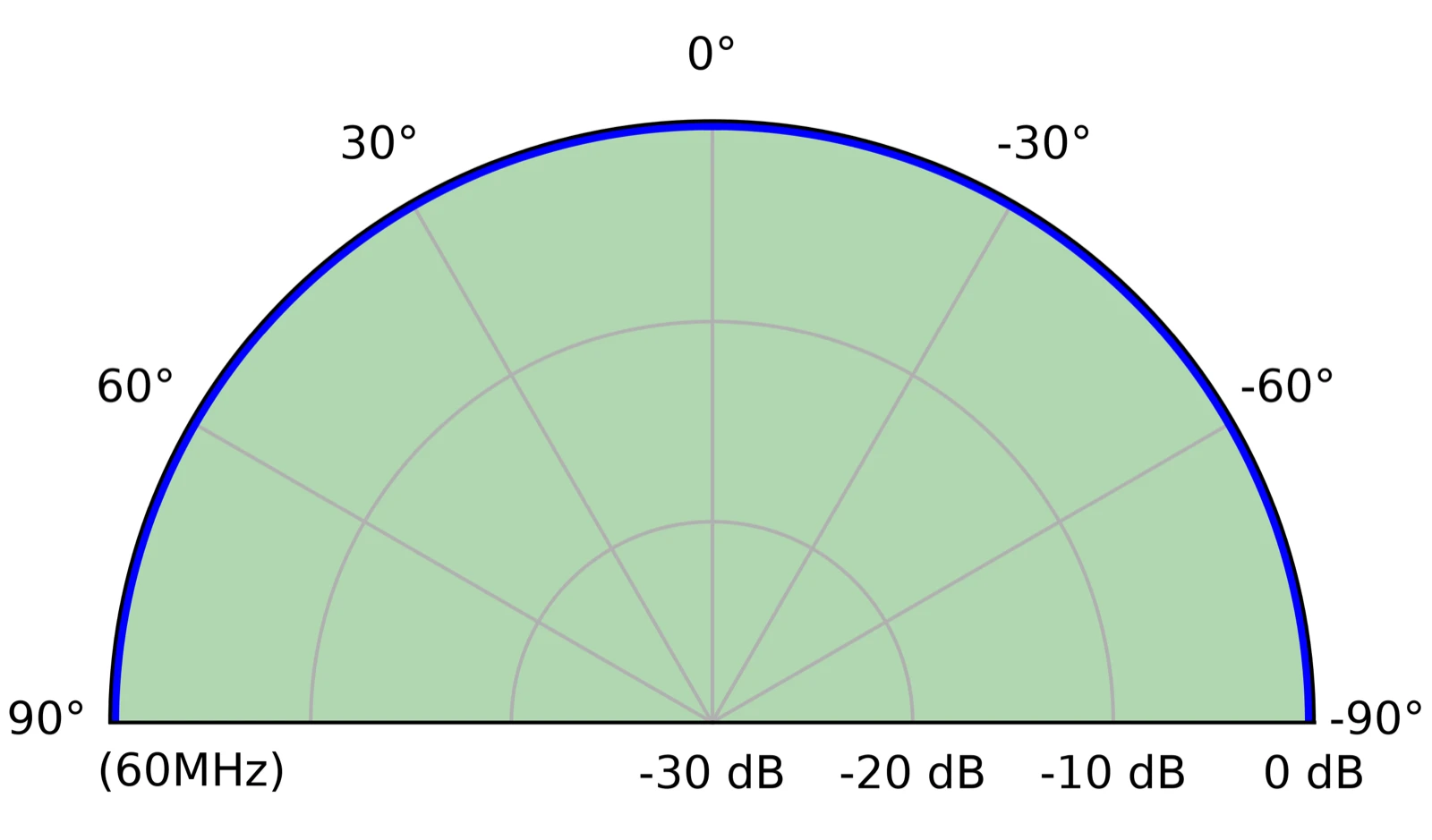

| Radiation Pattern | Monopole |
| Instantaneous Bandwidth | 482 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Connector | Type - N Standard |

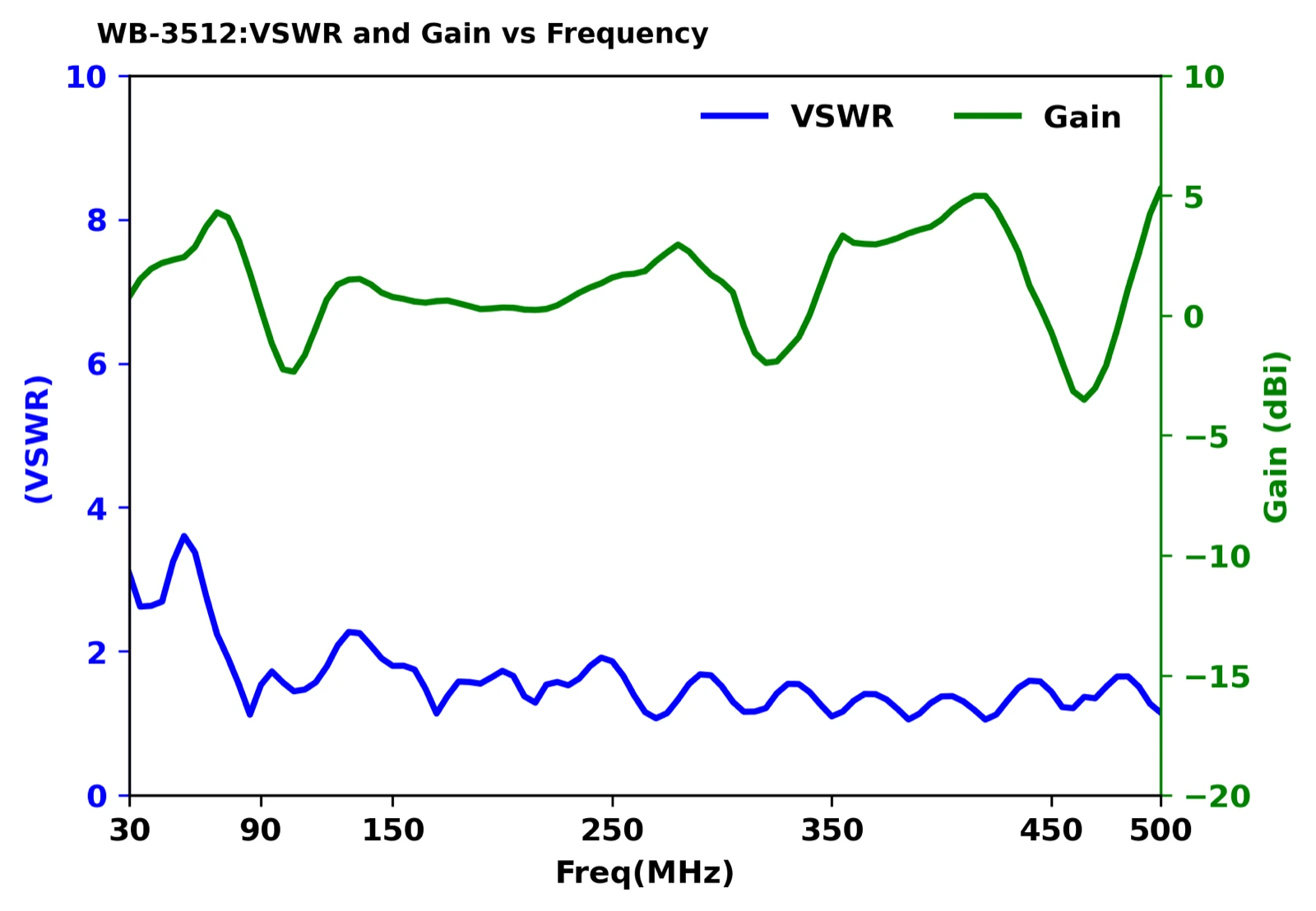

| VSWR | Average 3.5:1 or Less |
| Gain | -1 to +4 dBi |
| Height | 98" (2.4 m) |
|---|---|
| Weight | 9.5 lbs. (4.3 kg) |
| Color | Black |
