US-1387
42.5" (1.0 m) VHF, UHF, BROADBAND ANTENNA | 136-174 MHz (Lo Band) - 380-520 MHz (Mid Band) - 762-870 MHz (High Band)
- Bands
-
- Broadband
- UHF
- VHF
Overview

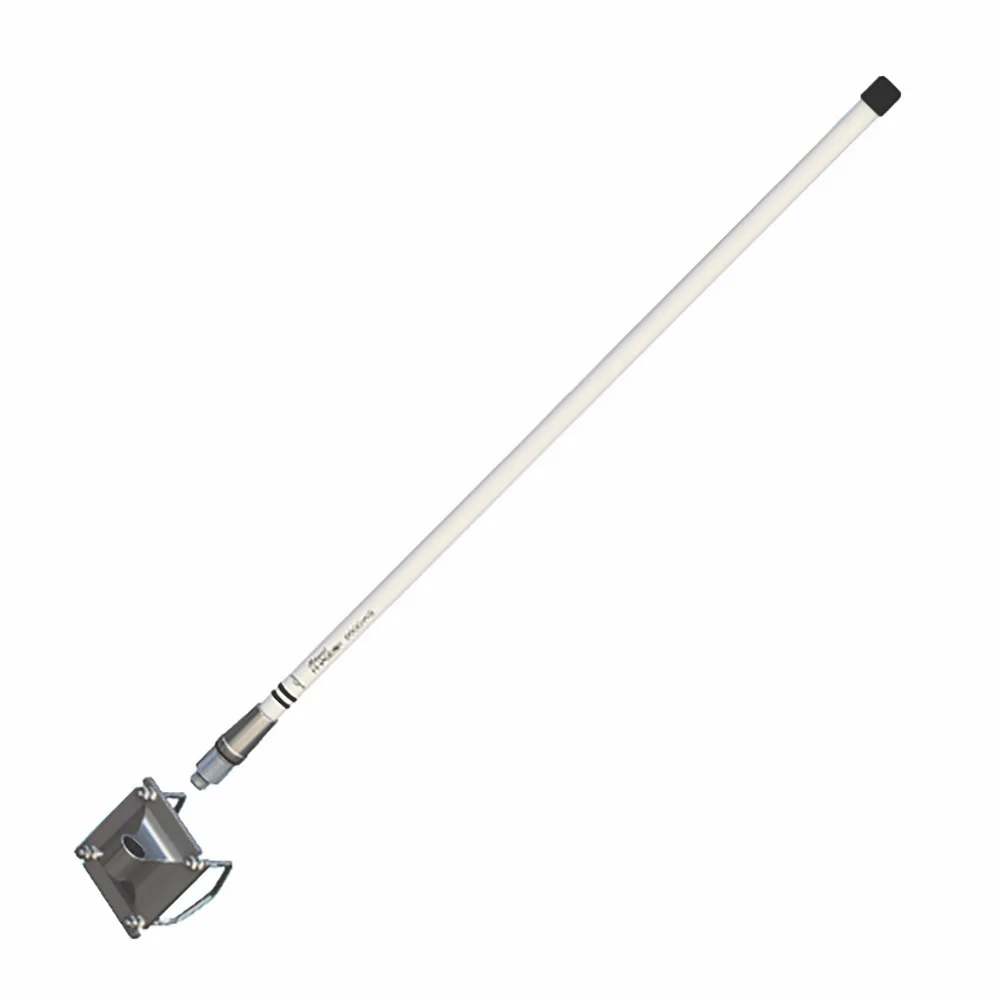

Shakespeare® US-1387 is a high-performance, broadband VHF/UHF dipole antenna engineered for reliable communications across a wide range of frequencies. Designed for commercial, law enforcement, and disaster management applications, US-1387 delivers dependable performance in demanding marine and land-based environments. Its ground-independent design allows versatile installation on vessels, base stations, and stationary platforms.
Ruggedly built for harsh conditions, US-1387 meets MIL-STD-810, Methods 501.5 and 502.5, requirements for temperatures from -40°F (-40°C) to 185°F (85°C) and withstands wind speeds up to 150 mph. It also meets shock and vibration requirements with TIA-102.CAAB, Sections 3.4.4 and 3.4.5.
Specifications
| Frequency Range | 136 - 174 MHz (Lo Band) 380 - 520 MHz (Mid Band) 762 - 870 MHz (High Band) |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 38 MHz, 140 MHz, 170 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 125 W CW |
| Connector | Quick Disconnect - Single “N” Female Connector |
| VSWR | <3.0:1 Across 95% of Band (Lo Band) <2.0:1 (Mid Band) <2.0:1 (High Band) |

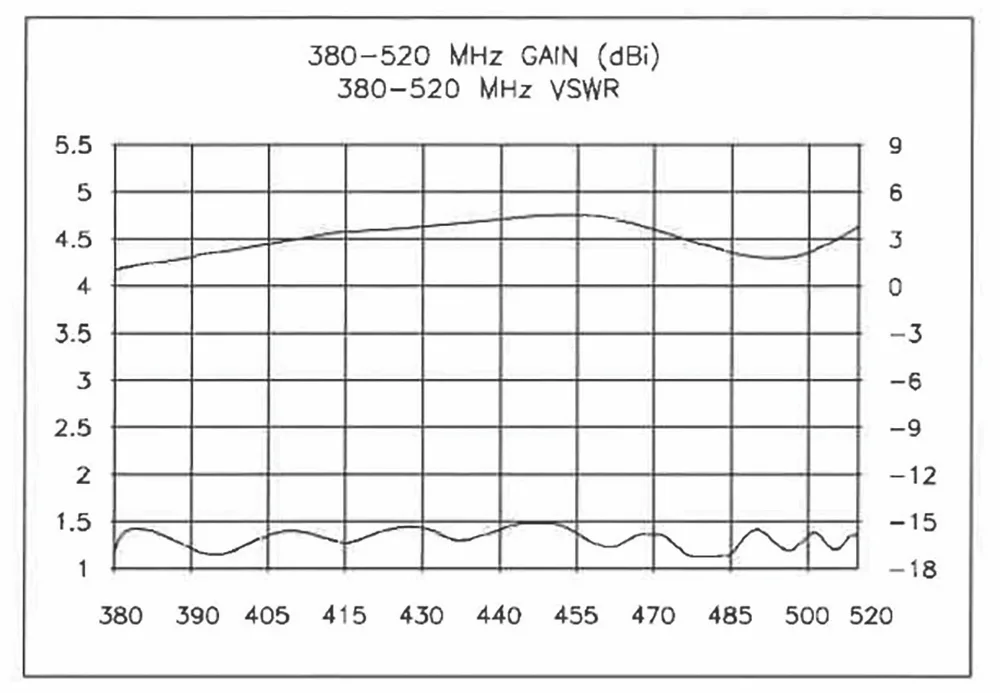

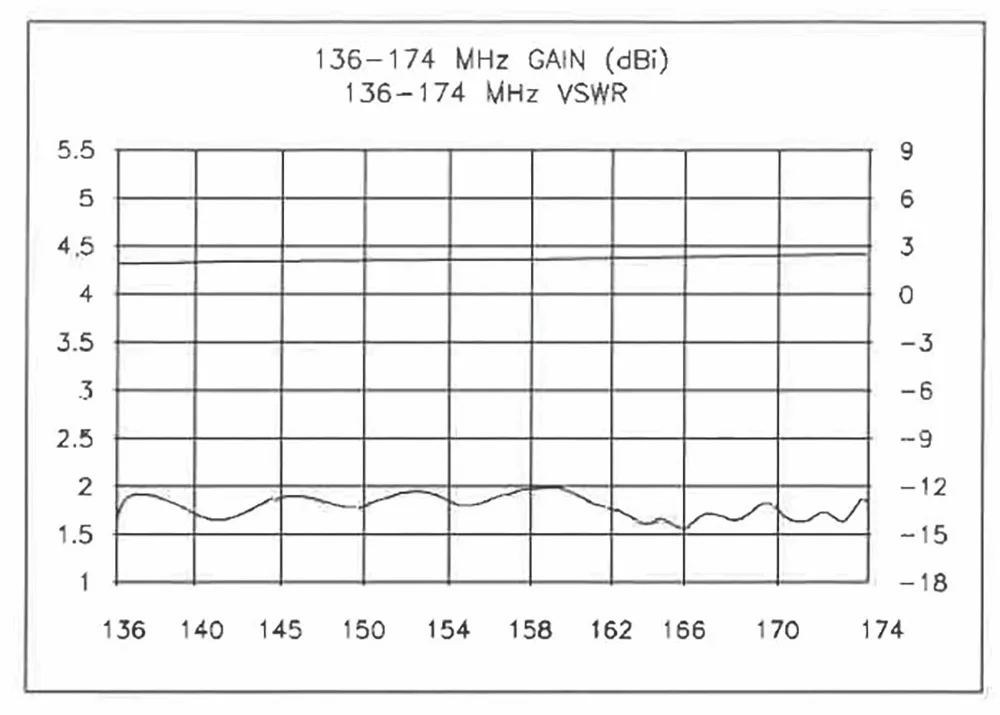

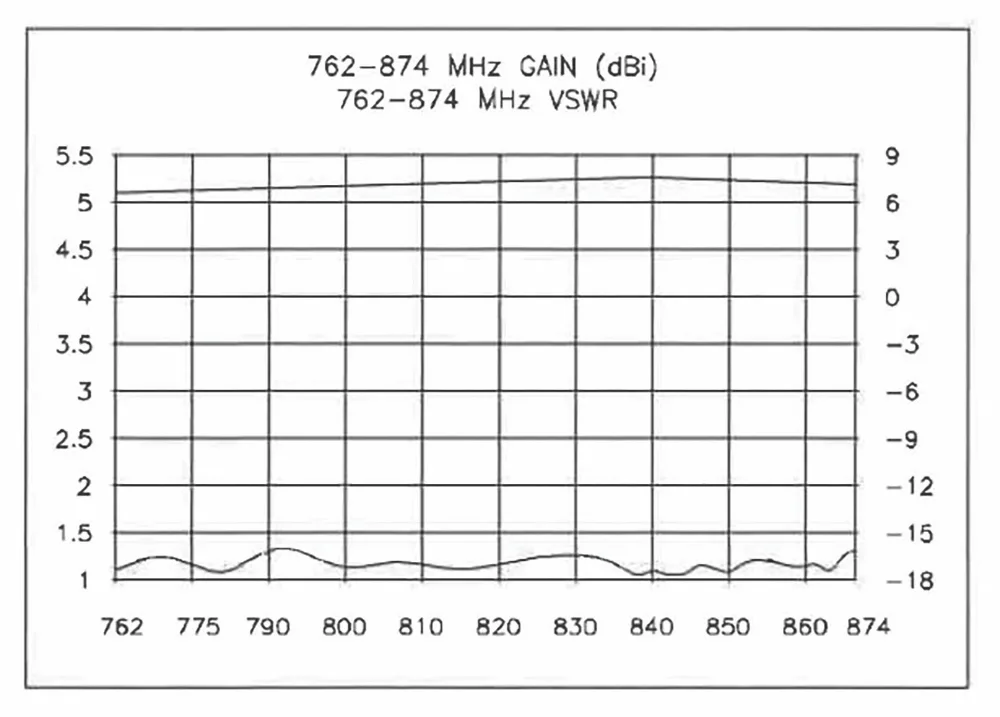

| Gain | +2.0 dBi to +2.6 dBi (LO) +1.4 dBi to +4.4 dBi (MID) +6.6 dBi to +7.8 dBi (HIGH) |
| Height | 42.5" (1.0 m) |
|---|---|
| Weight | < 8 lbs. (< 3.6 kg) |
| Wind Rating | (Wind Load) 100 MPH (2.5 or Better Safety Factor) 125 MPH (1.6 or Better Safety Factor) 150 MPH (1.2 or Better Safety Factor) |
| Color | White |
