Special Application Antennas
SKP-TDL
PORTABLE HF TACTICAL DELTA LOOP ANTENNA KIT | 3.5-54 MHz
- Band
-
- HF
Overview

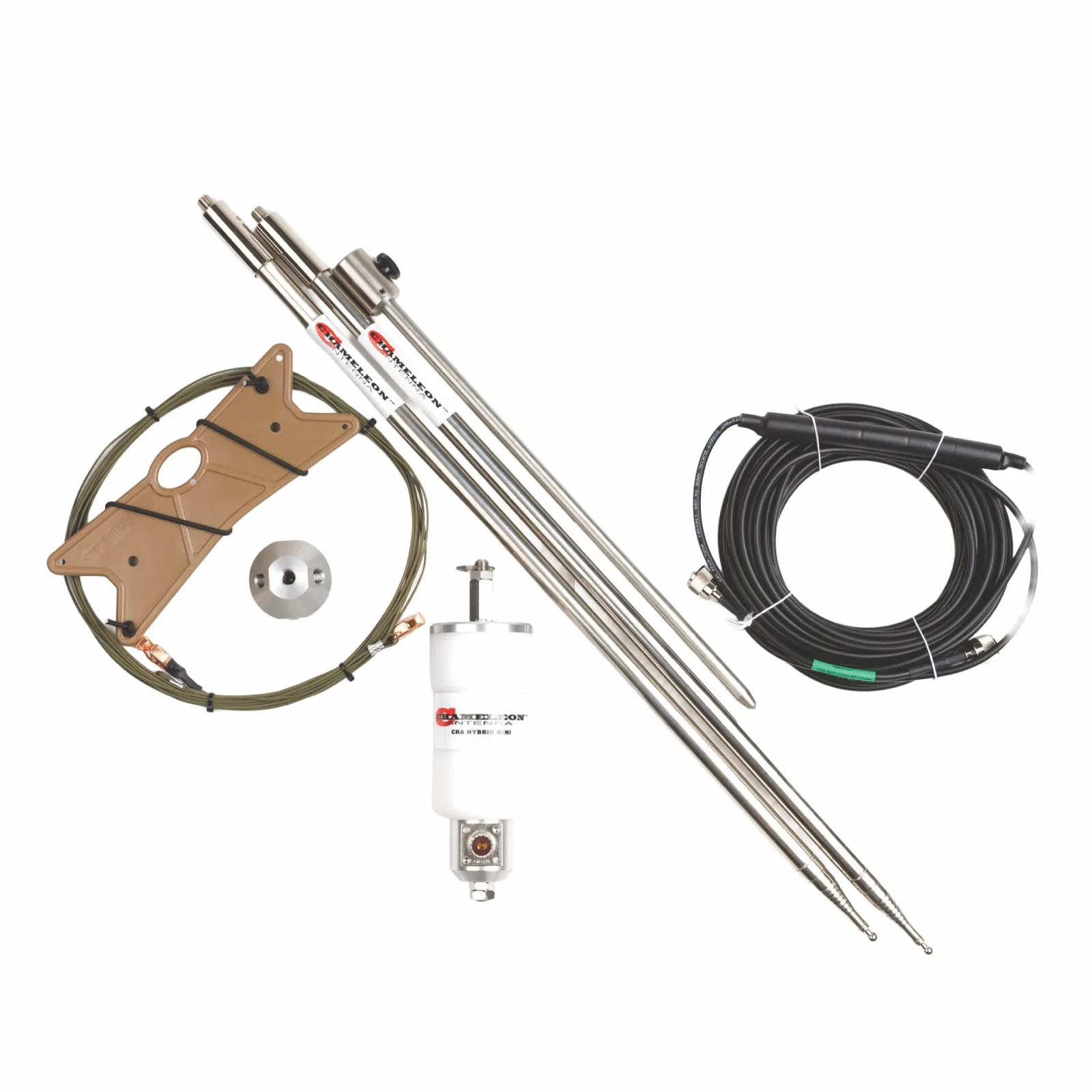

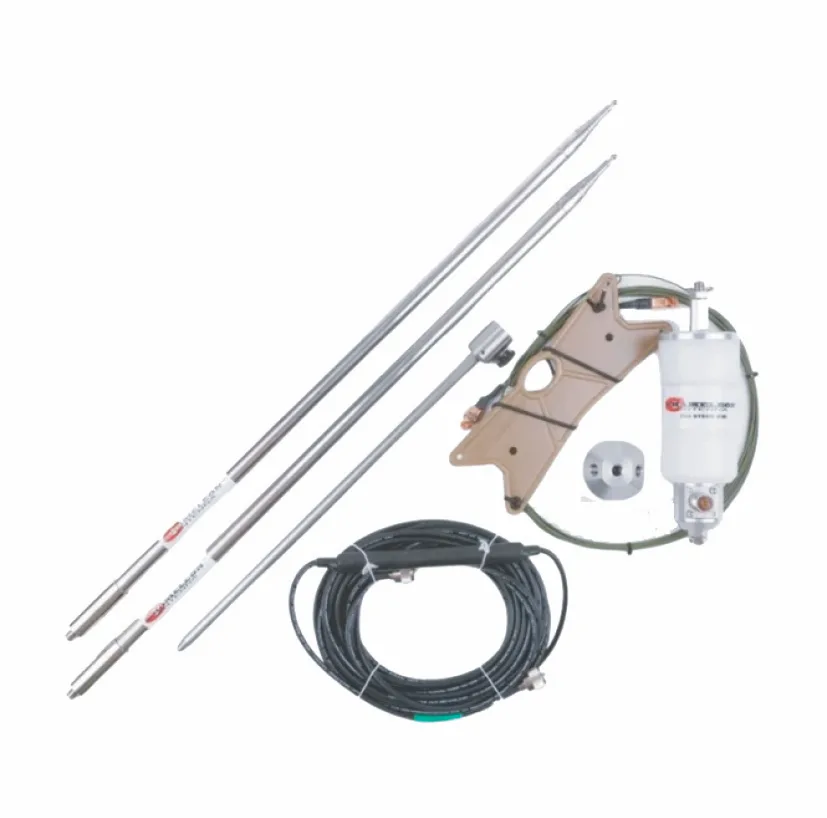

Shakespeare® SKP-TDL is a rugged, portable HF Tactical Delta Loop antenna kit engineered for reliable communications in demanding military and tactical field environments. Developed in collaboration with Chameleon Antenna, the SKP-TDL features a rugged, military-specification design that combines durability, portability, and versatile field deployment. Engineered for quick setup and a compact footprint, the antenna operates across a broad 3.5–54 MHz frequency range and is available with either the Hybrid MICRO or Hybrid MINI to accommodate different power requirements.
Specifications
| Frequency Range | 3.5 – 54 MHz |
|---|---|
| Radiation Pattern | Omni/Bi-directional |
| Instantaneous Bandwidth | 50.5 MHz |
| Polarization | Horizontal |
| Input Impedance | 50 OHMS Nominal |
| Power | HYBRID MICRO-100W SSB Phone, 25W CW, 25W High Duty Cycle Digital Modes HYBRID MINI-500W SSB Phone, 100W CW, 50W High Duty Cycle Digital Modes |
| Connector | Type - N |
| VSWR | 2.5:1 |
| Height | Custom height |
|---|---|
| Weight | 5 lbs. (2.2 kg) |
