Special Application Antennas
SKP-TD-2.0
170' (51.8 m)/60' (18.2 m)Min HF TACTICAL DIPOLE ANTENNA | 1.8-54 MHZ
- Bands
-
- Broadband
- HF
Overview

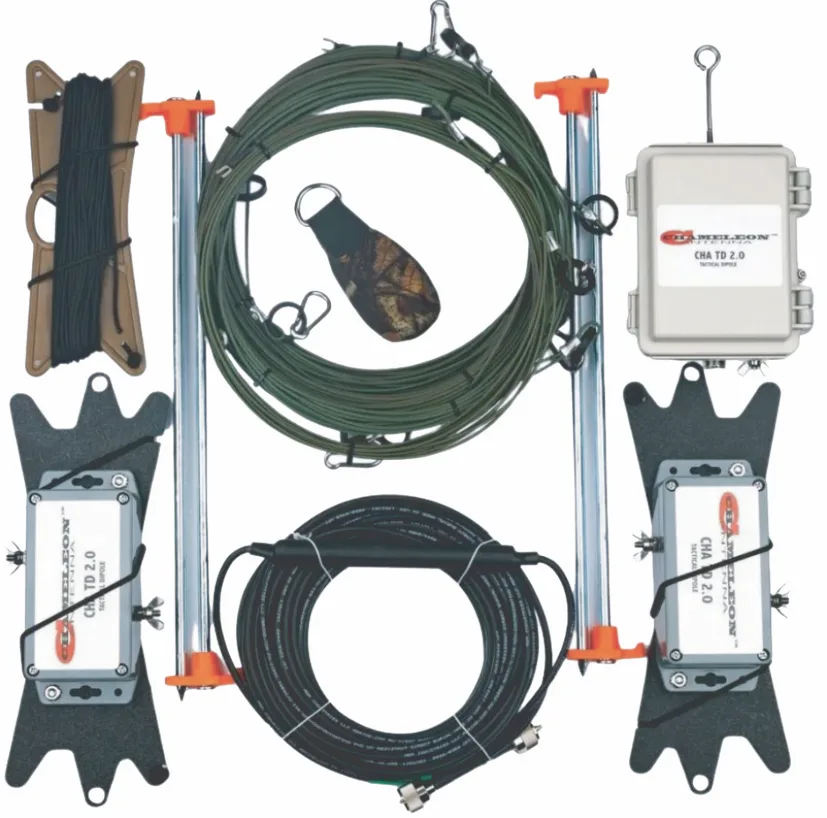

Shakespeare® SKP-TD 2.0 is a rugged, broadband HF Tactical Dipole antenna engineered for reliable short- to long-range communications in demanding military and tactical field environments. Developed in collaboration with Chameleon Antenna, the SKP-TD 2.0 features a rugged design that is 30% lighter than comparable antennas, providing enhanced portability, simplified operation, and rapid field deployment. Incorporating design improvements based on years of rigorous field use, the antenna delivers dependable performance across a continuous 1.8–54 MHz frequency range without requiring adjustments or, in most applications, an antenna tuner or coupler.
Specifications
| Frequency Range | 1.8 - 54 MHz continuous |
|---|---|
| Radiation Pattern | Omni/Bi-directional |
| Instantaneous Bandwidth | 52.2 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 100 W continuous duty cycle, 250W CW, and 500W PEP SSB Phone |
| Connector | Type - BNC |
| VSWR | Typically, Less than 2.0:1, (subject to frequency and configuration) |
| Height | 170' (51.8 m) (maximum), 60' (18.2 m)(minimum) |
|---|---|
| Weight | 4.2 lbs. (1.9 kg) |
