Special Application Antennas
SKP-MPAS-2.0
216" (5.4 m) HF MODULAR PORTABLE ANTENNA SYSTEM (MPAS) | 1.7-55 MHz
- Band
-
- HF
Overview

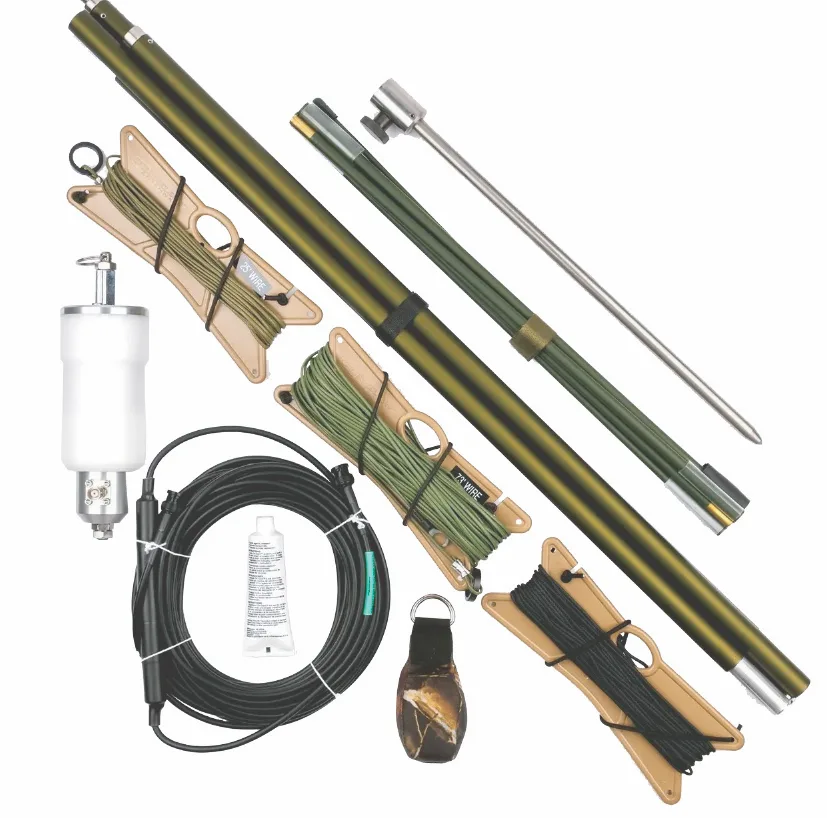

Shakespeare® SKP-MPAS 2.0 is a versatile, portable HF antenna system engineered for reliable communications in demanding military and tactical field environments. Designed for flexibility and ease of deployment, the Modular Portable Antenna System (MPAS 2.0) allows operators to configure the antenna in multiple configurations to meet specific communication requirements and environmental conditions. Operating across a broad 1.7–55 MHz frequency range, the SKP-MPAS 2.0 delivers adaptable performance for a wide range of field communication applications.
Specifications
| Frequency Range | 1.7 – 55 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 53.3 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 100 W CW |
| Connector | Type - BNC |
| VSWR | 2.5:1 |
| Height | 29” (0.7 m) Collapsed – 216" (5.4 m) Extended |
|---|---|
| Weight | 4.75 lbs. (2.1 kg) |
