Vehicular Antennas
SKP-16V3
192" (4.8 m) HF FOUR-SECTION ANTENNA KIT w/4289-W BASE | 2-30 MHz
- Band
-
- HF
Overview

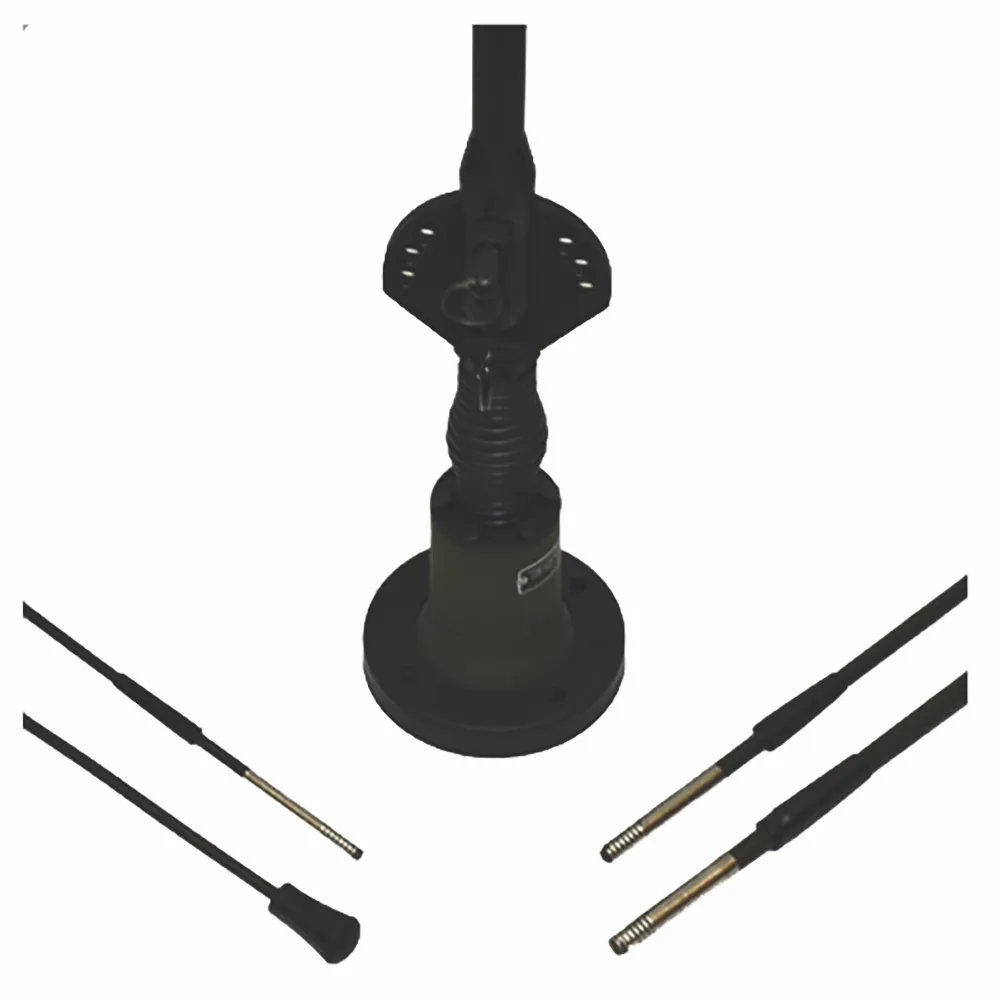

Shakespeare® SKP-16V3 is a rugged, 16 ft (4.8 m) four-section HF antenna kit engineered for reliable communications in demanding military and tactical field environments. Part of Shakespeare’s proven 120-Series HF Antenna System, deployed with U.S. and NATO radio systems worldwide, the SKP-16V3 delivers dependable performance across a 2–30 MHz frequency range. Designed for versatility and rapid deployment, the antenna features a modular, four-section construction with a 4289-W base that allows for quick, tool-free assembly by a single operator.
Featuring Shakespeare’s exclusive tapered, rolled-thread ferrule design, the SKP-16V3 provides exceptional mechanical strength and secure electrical contact, even during antenna flexing. Its rugged construction and adaptable mounting options make it a practical, field-ready solution for military and tactical HF communication applications.
Specifications
| Frequency Range | 2 - 30 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 28 MHz (Needs Tuner) |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 1 KW |
| VSWR | Based on Radio System |
| Gain | Based on Radio System |
| Height | 192" (4.8 m) 4 sections - 20.5" (0.5 m) base |
|---|---|
| Weight | ~10 lb. (4.54 kg) |
