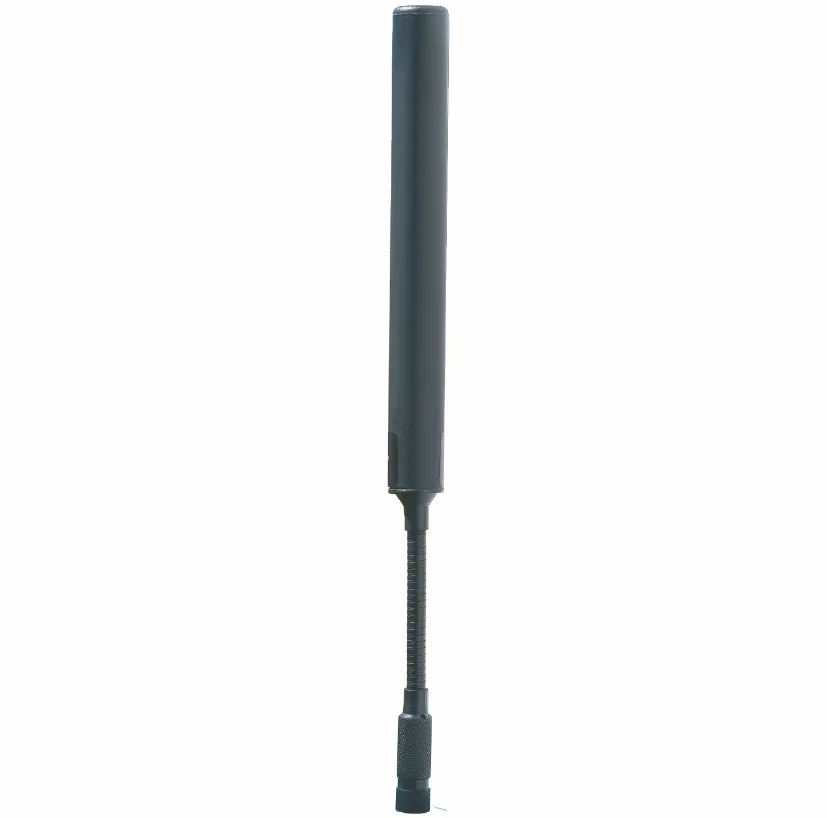

MP-8250/TG
13" (0.3 m) L-BAND MANPACK ANTENNA | 800-2700 MHz
- Band
-
- L-Band
Overview
Shakespeare® MP-8250/TG is a L-band manpack antenna engineered for reliable communications in demanding military and tactical field environments. Designed for portable radio applications, the MP-8250/TG provides broad frequency coverage across the 800–2700 MHz range, supporting versatile communication requirements. Featuring an omnidirectional radiation pattern, vertical polarization, and an average VSWR of less than 2:1 across the operating band, this antenna delivers dependable RF performance for tactical communication applications.
Specifications
| Frequency Range | 800 - 2700 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 1900 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHM |
| Power | 60 W |
| Connector | Type - TNC (M) |

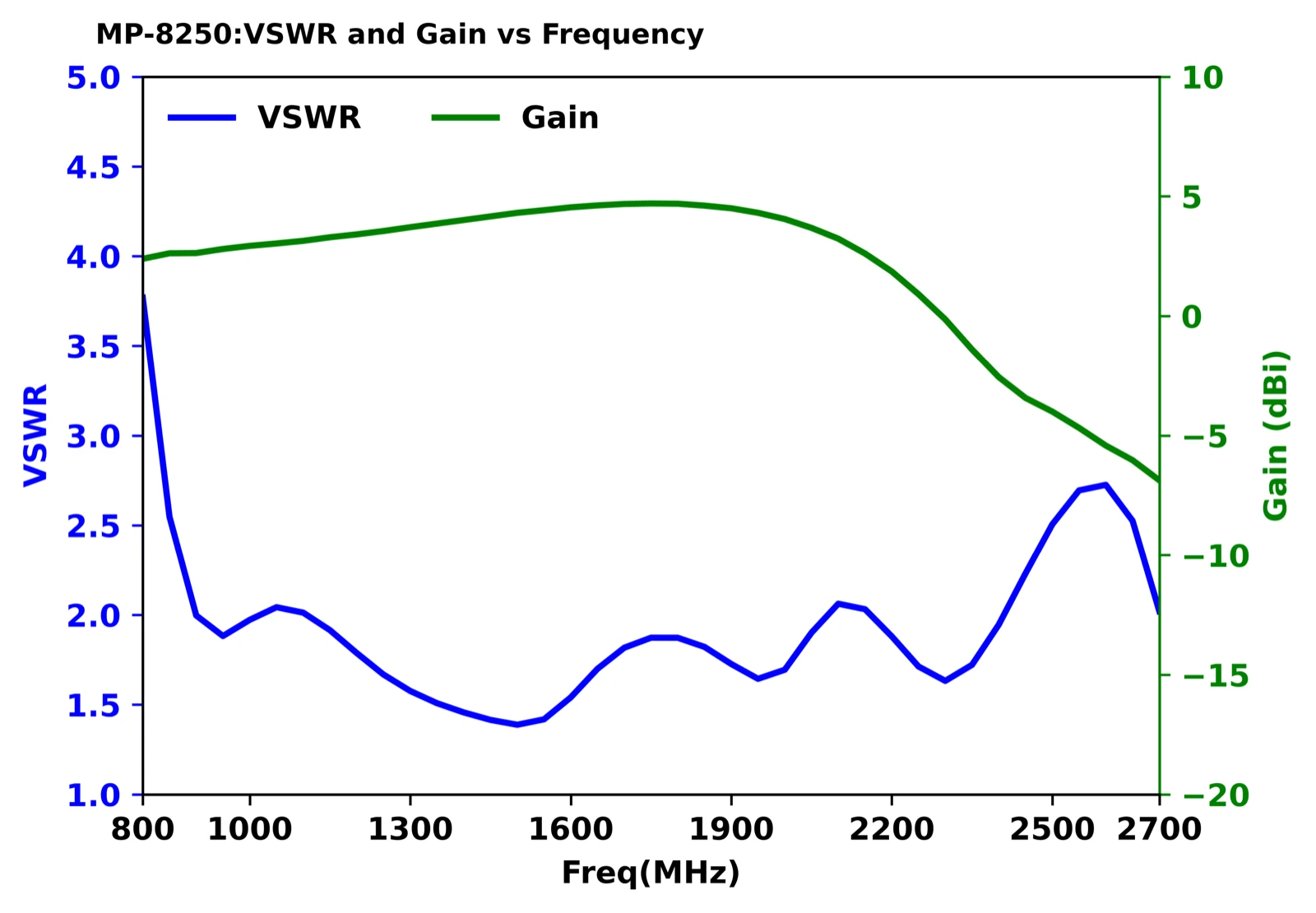

| VSWR | Average < 2:1 Across Band |
| Gain | -6 dBi to 4.7 dBi |
| Height | 13" (0.3 m) |
|---|---|
| Weight | < 1.5 lbs. (< 0.6 kg) |
| Color | Black |
