Manpack Antennas
MP-3512/TGDP-V
34" (0.8 m) VHF, UHF, BROADBAND, CENTER FED DIPOLE MANPACK ANTENNA | 30-512 MHz
- Bands
-
- Broadband
- UHF
- VHF
Overview

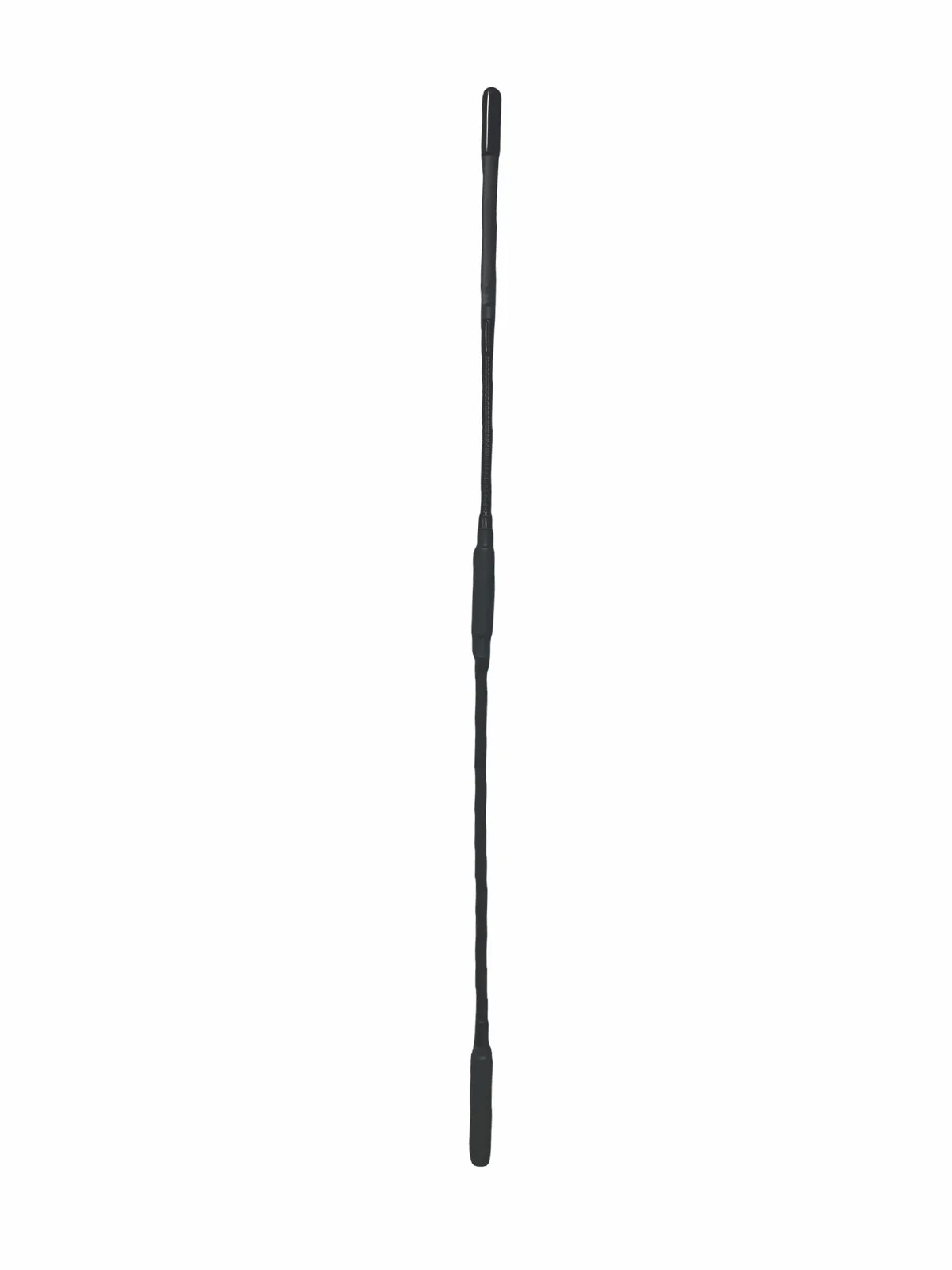

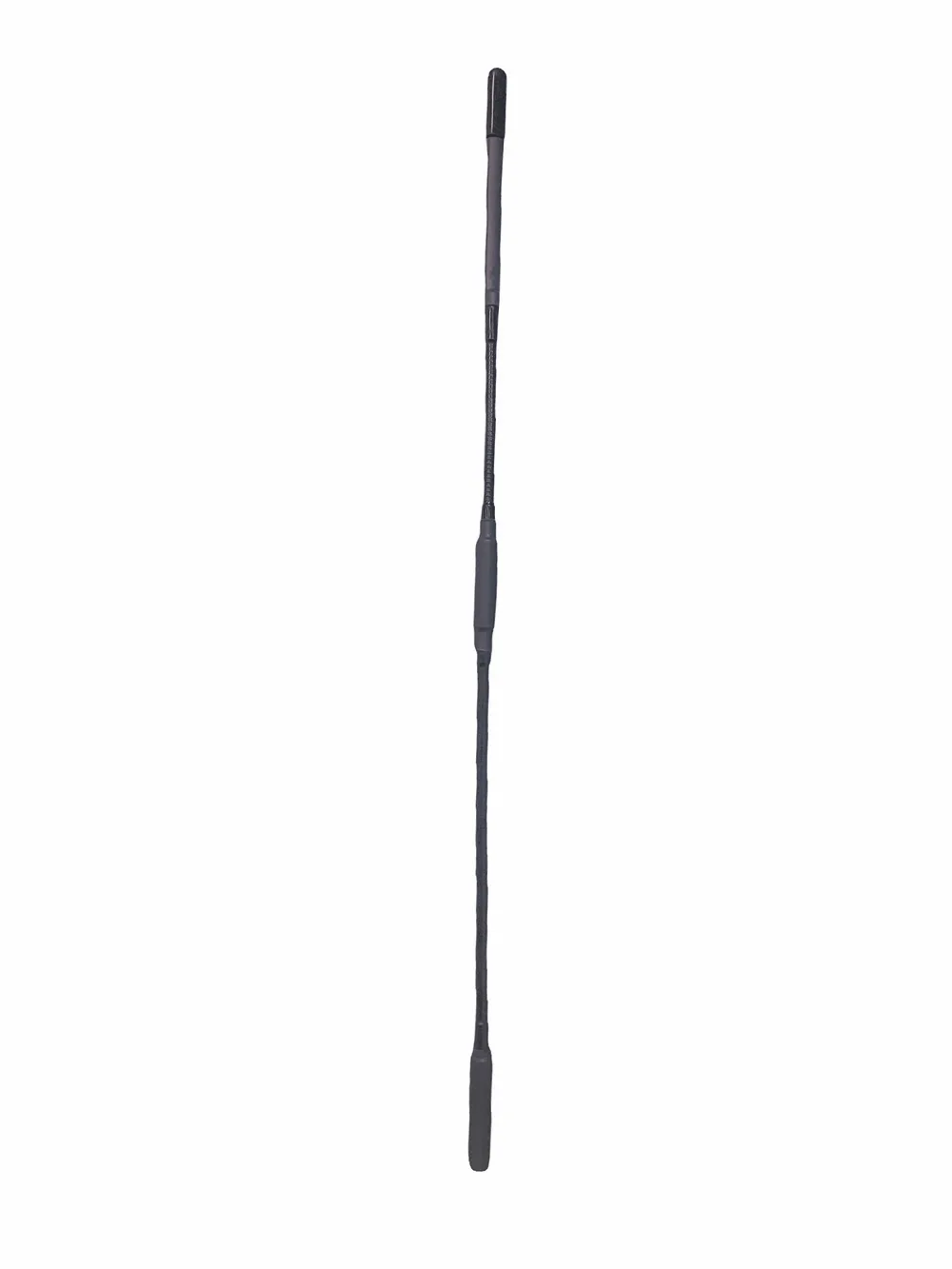

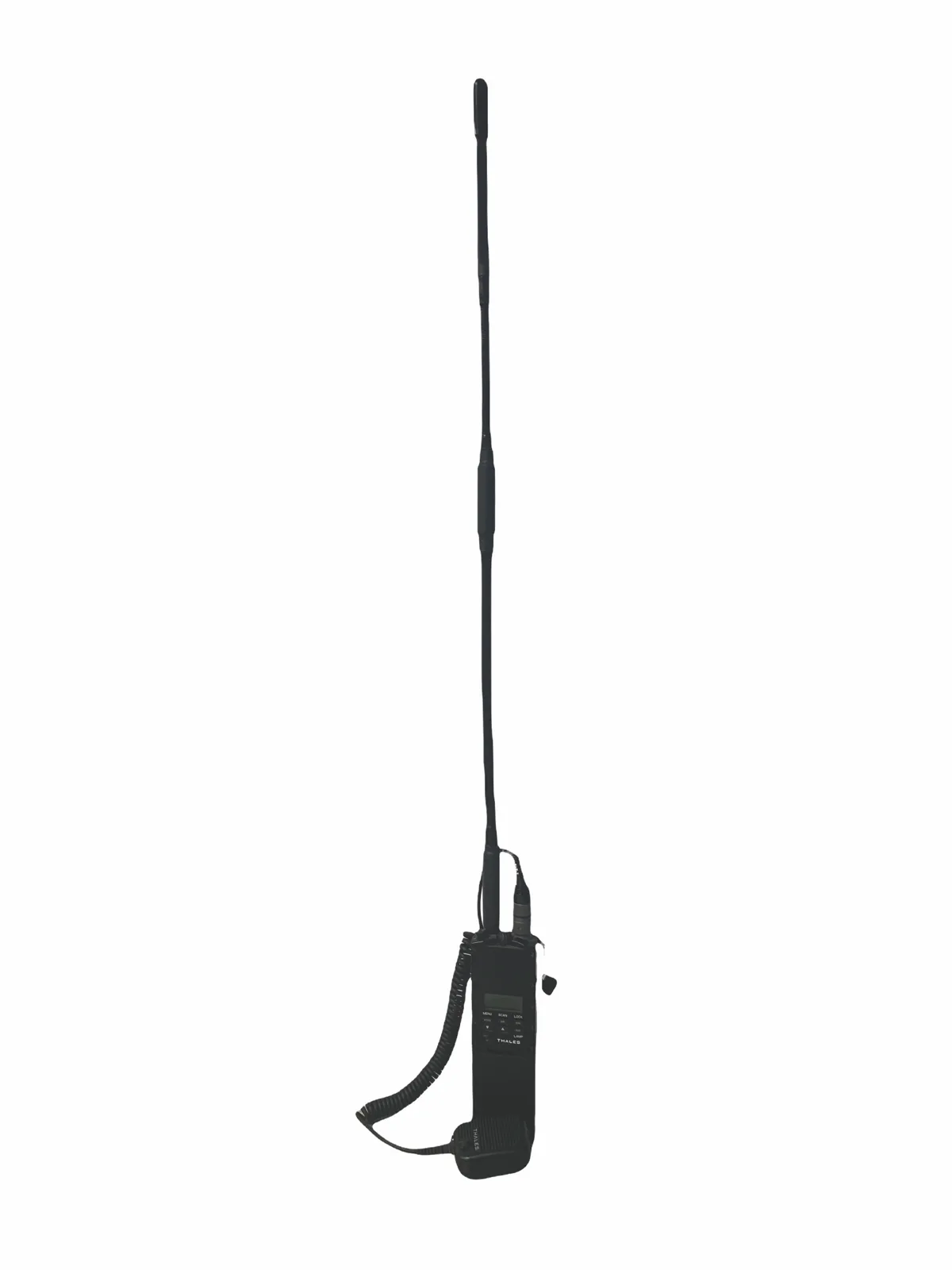

Shakespeare® MP-3512/TGDP-V is a broadband VHF/UHF center-fed dipole manpack antenna engineered for reliable communications in demanding military and tactical field environments. Designed for manpack and handheld radio applications, the MP-3512/TGDP-V provides broad frequency coverage across the 30–512 MHz range. Featuring an average VSWR of 2:1 across the operating band, this antenna delivers efficient RF performance with omnidirectional coverage to support versatile tactical communication requirements.
Specifications
| Frequency Range | 30 - 512 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 482 MHz |
| Polarization | Linear |
| Input Impedance | 50 OHM |
| Power | 20 W |
| Connector | Type - TNC (M) |
| VSWR | Average 2:1 Across Band |
| Gain | -2 to -30 dBi |
| Height | 34" (0.8 m) |
|---|---|
| Weight | < 1.5 lbs. (< 0.6 kg) |
| Color | Black |
