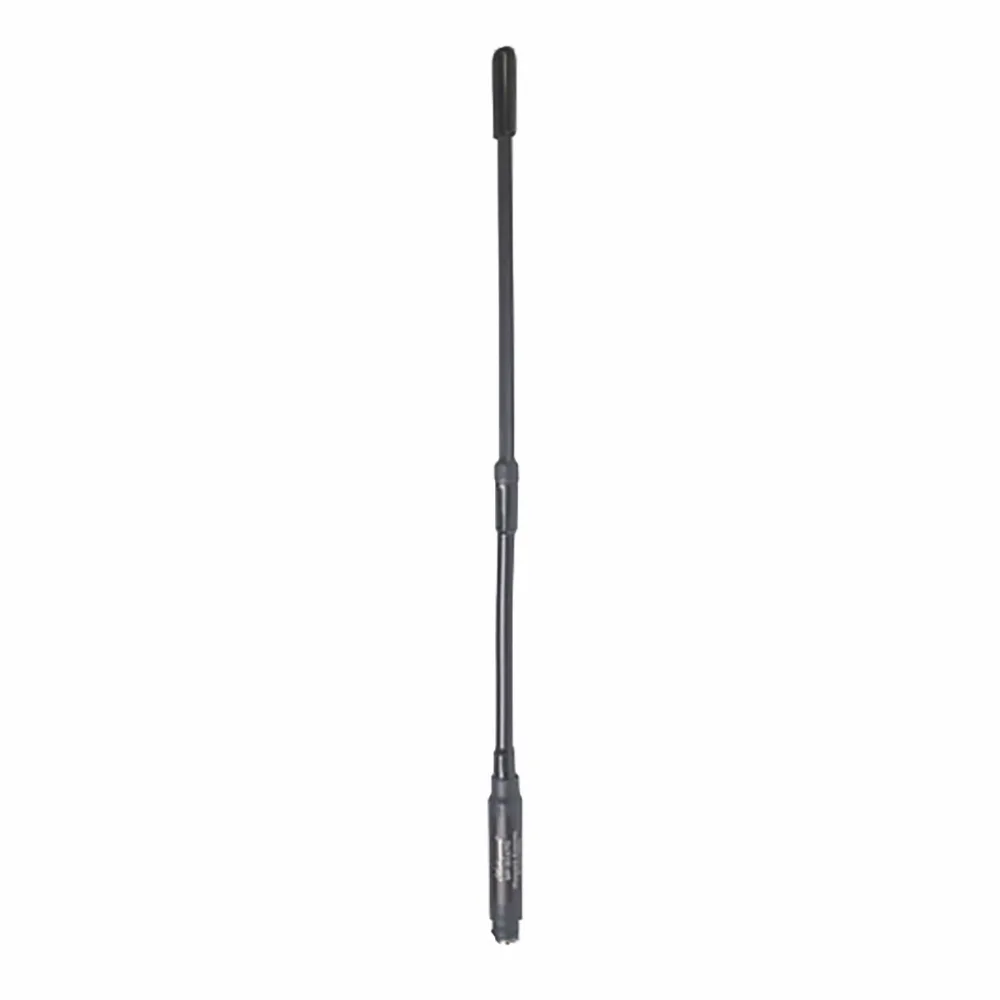

Manpack Antennas
MP-3512/TG
19.2" (0.4 m) VHF, UHF, BROADBAND MANPACK ANTENNA w/GOOSENECK | 30-512 MHz
- Bands
-
- Broadband
- UHF
- VHF
- NSN
- 5985016303982
Overview
Shakespeare® MP-3512/TG is a field-ready, compact, broadband VHF/UHF manpack antenna with an integrated gooseneck, engineered for reliable communications in demanding military and tactical field environments. Designed for portable radio applications, the MP-3512/TG provides broad frequency coverage across the 30–512 MHz range with a VSWR of 2.5:1 or less for dependable RF performance. Featuring an omnidirectional radiation pattern and linear polarization, this antenna supports versatile tactical communication requirements. With a compact 1.6 ft (0.4 m) design and flexible gooseneck, the MP-3512/TG allows for convenient antenna positioning and attaches quickly to rucksacks, MOLLE gear, CamelBak® helmets, or belt loops.
Specifications
| Frequency Range | 30 - 512 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 482 MHz |
| Polarization | Linear |
| Input Impedance | 50 OHM |
| Power | 20 W |
| Connector | Type - TNC (M) |

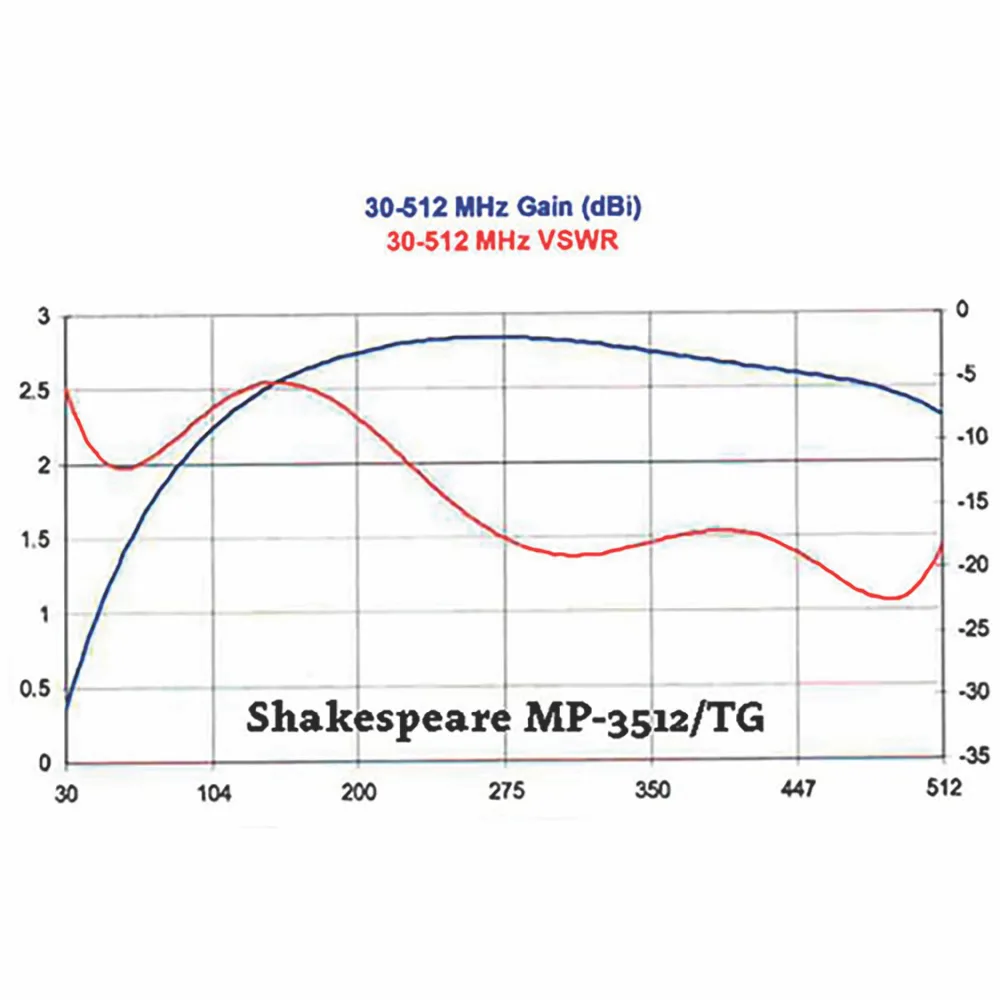

| VSWR | 2.5:1 or Less |
| Gain | -2 to -30 dBi |
| Height | 19.2" (0.4 m) |
|---|---|
| Weight | < 1 lb. (< 0.4 kg) |
| Color | Black |
