Manpack Antennas
MP-3512/N
20" (0.5 m) VHF, UHF, BROADBAND MANPACK ANTENNA | 30-512 MHz (N)
- Bands
-
- Broadband
- UHF
- VHF
Overview
Shakespeare® MP-3512/N is a broadband VHF/UHF manpack antenna engineered for reliable communications in demanding military and tactical field environments. Designed for manpack and handheld radio applications, the MP-3512/N provides broad frequency coverage across the 30–512 MHz range with a VSWR of 2.5:1 or less for dependable RF performance. Featuring an omnidirectional radiation pattern and linear polarization, the antenna supports versatile tactical communication requirements.
Specifications
| Frequency Range | 30 - 512 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 482 MHz |
| Polarization | Linear |
| Input Impedance | 50 OHM |
| Power | 20 W |
| Connector | Type - N |

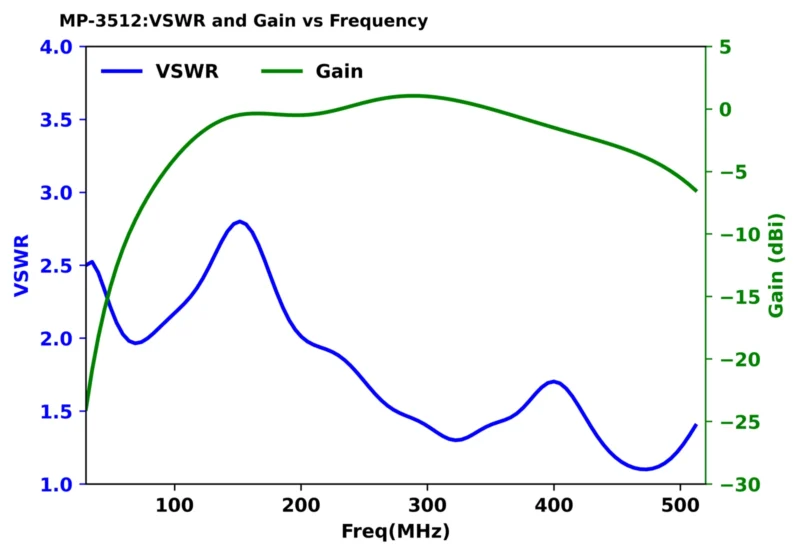

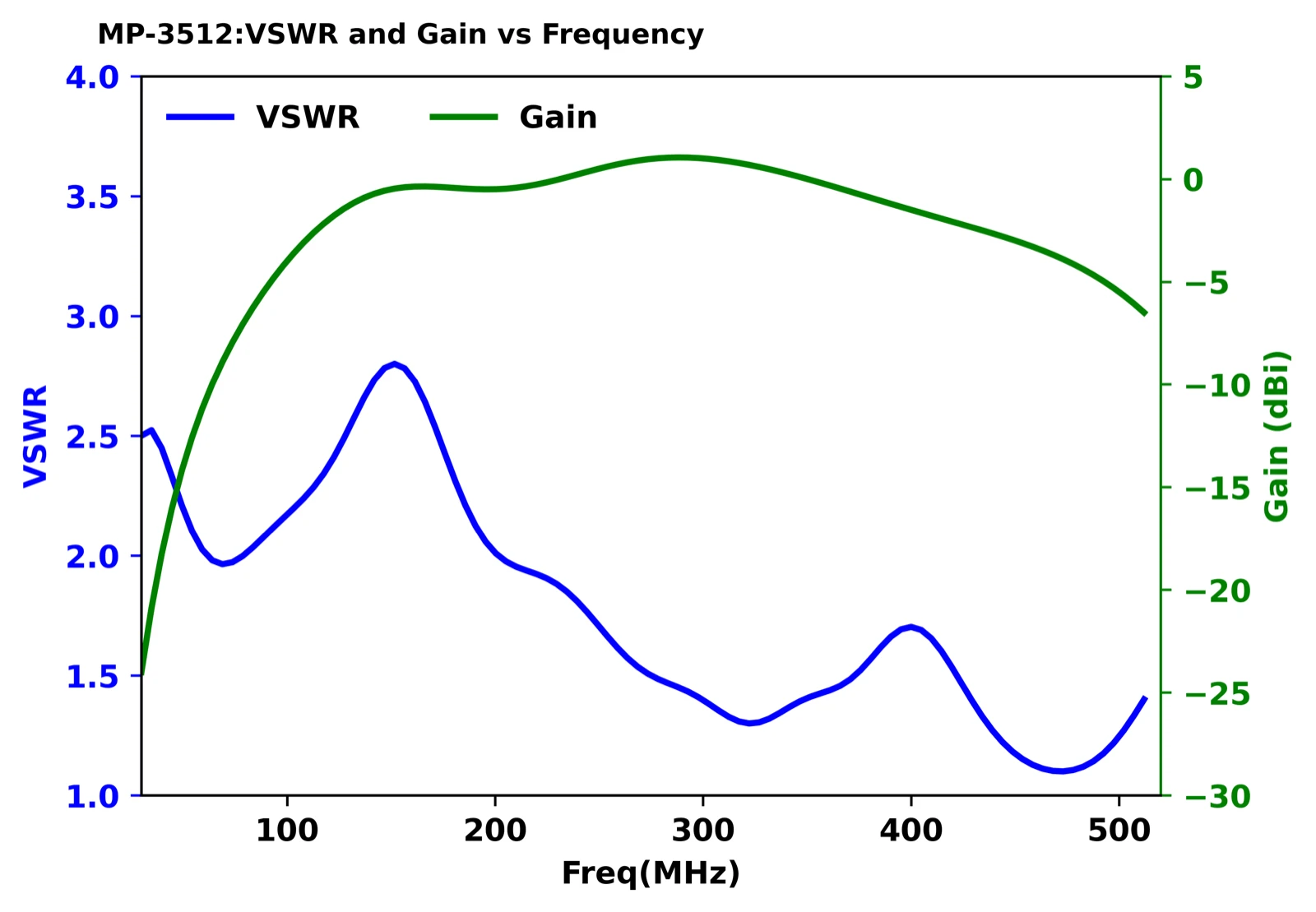

| VSWR | 2.5:1 or Less |
| Gain | -2 to -30 dBi |
| Height | 20" (0.5 m) |
|---|---|
| Weight | < 1 lb. (< 0.4 kg) |
| Color | Black |
