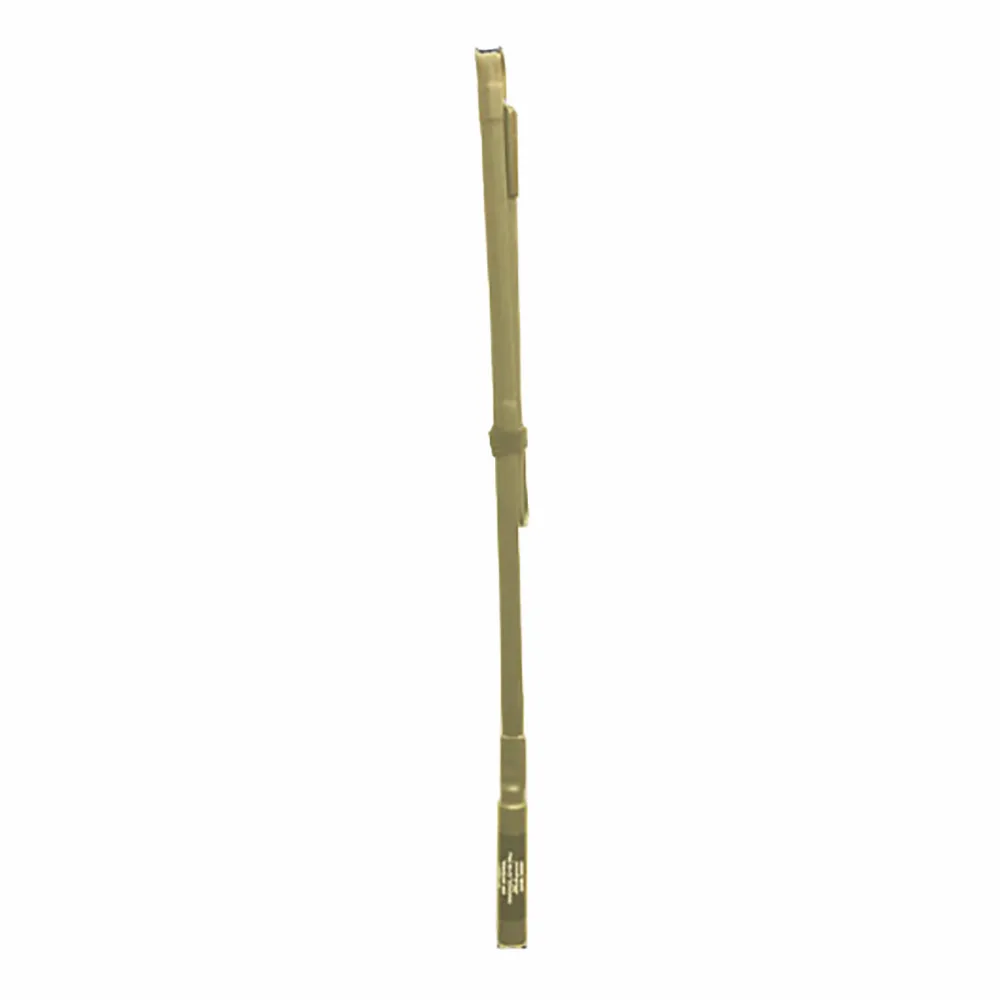

Manpack Antennas

MP-3088/T

42" (1.0 m) VHF MANPACK ANTENNA | 30-88 MHz

Band
  • VHF

Overview

Shakespeare® MP-3088/T is a rugged VHF manpack antenna engineered for reliable communications in demanding military and tactical field environments. Designed for portability and rapid deployment, the MP-3088/T operates across a 30–88 MHz frequency range, providing omnidirectional coverage and linear polarization for versatile tactical communication applications. Built to meet or exceed MIL-STD-810 requirements, this antenna combines durable construction with dependable RF performance in challenging operational conditions.

Specifications

Electrical
Frequency Range 30 - 88 MHz
Radiation Pattern Omnidirectional
Instantaneous Bandwidth 58 MHz
Polarization Linear
Input Impedance 50 OHMS Nominal
Power 20 W CW
Connector Type - TNC (M)

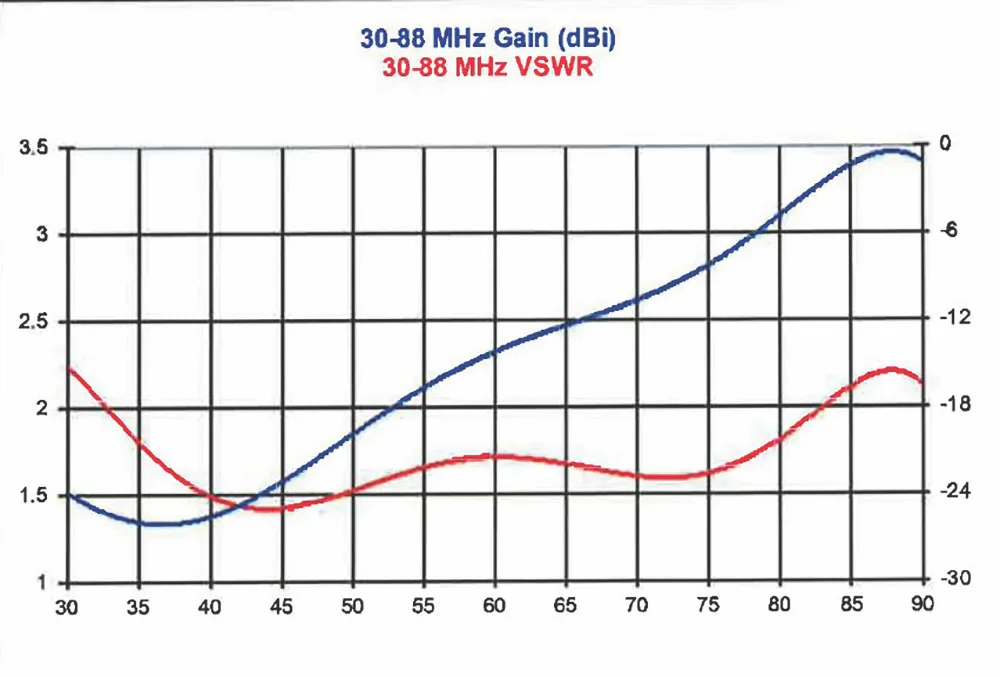

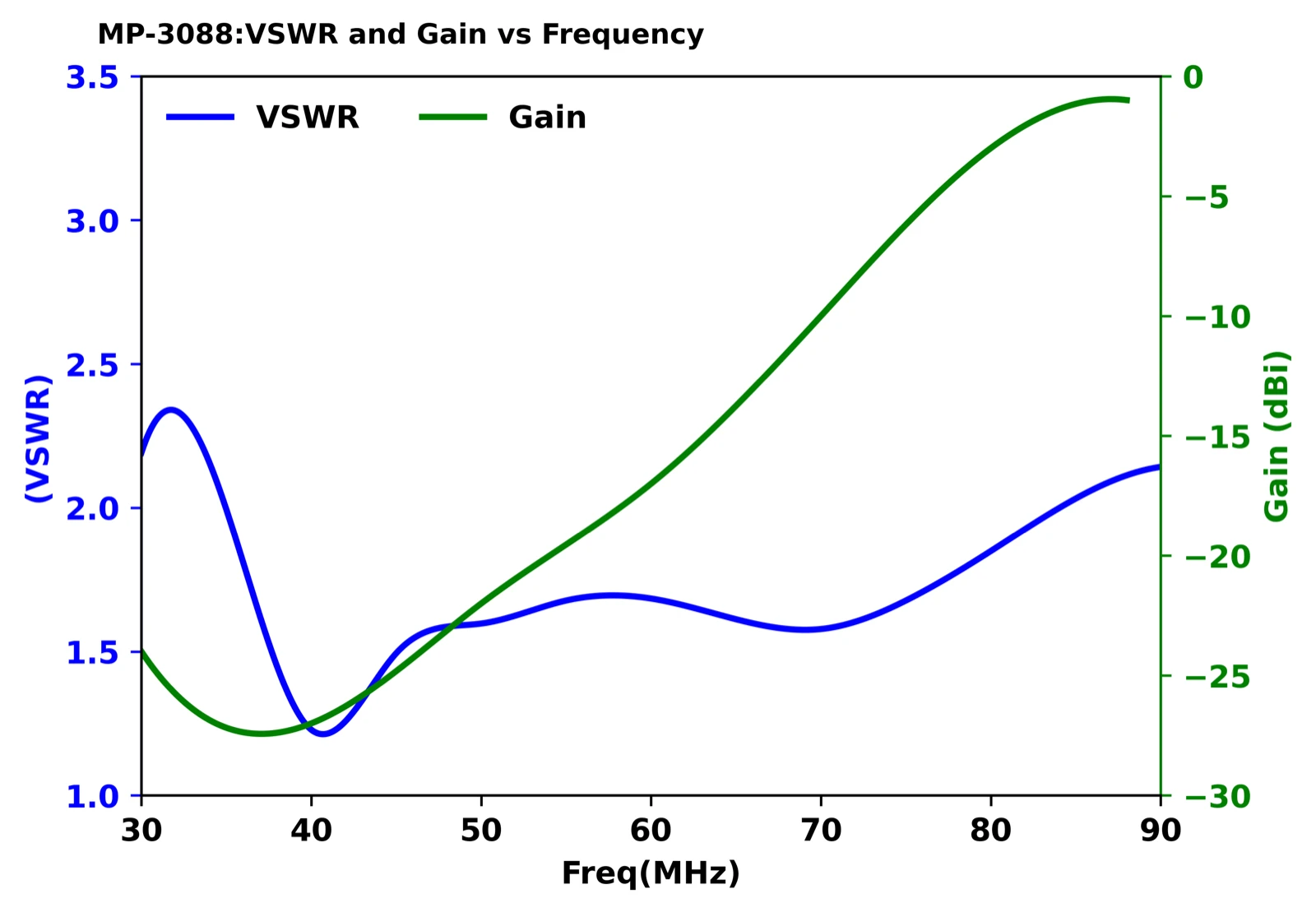

VSWR 2.5:1 or Less
Gain -27 to 0 dBi
Mechanical
Height 42" (1.0 m)
Weight < .5 lbs. (< 0.23 kg)
Color Black
