MP-2245/T
12.96" (0.3 m) UHF MANPACK ANTENNA | 225-450 MHz
- Band
-
- UHF
Overview

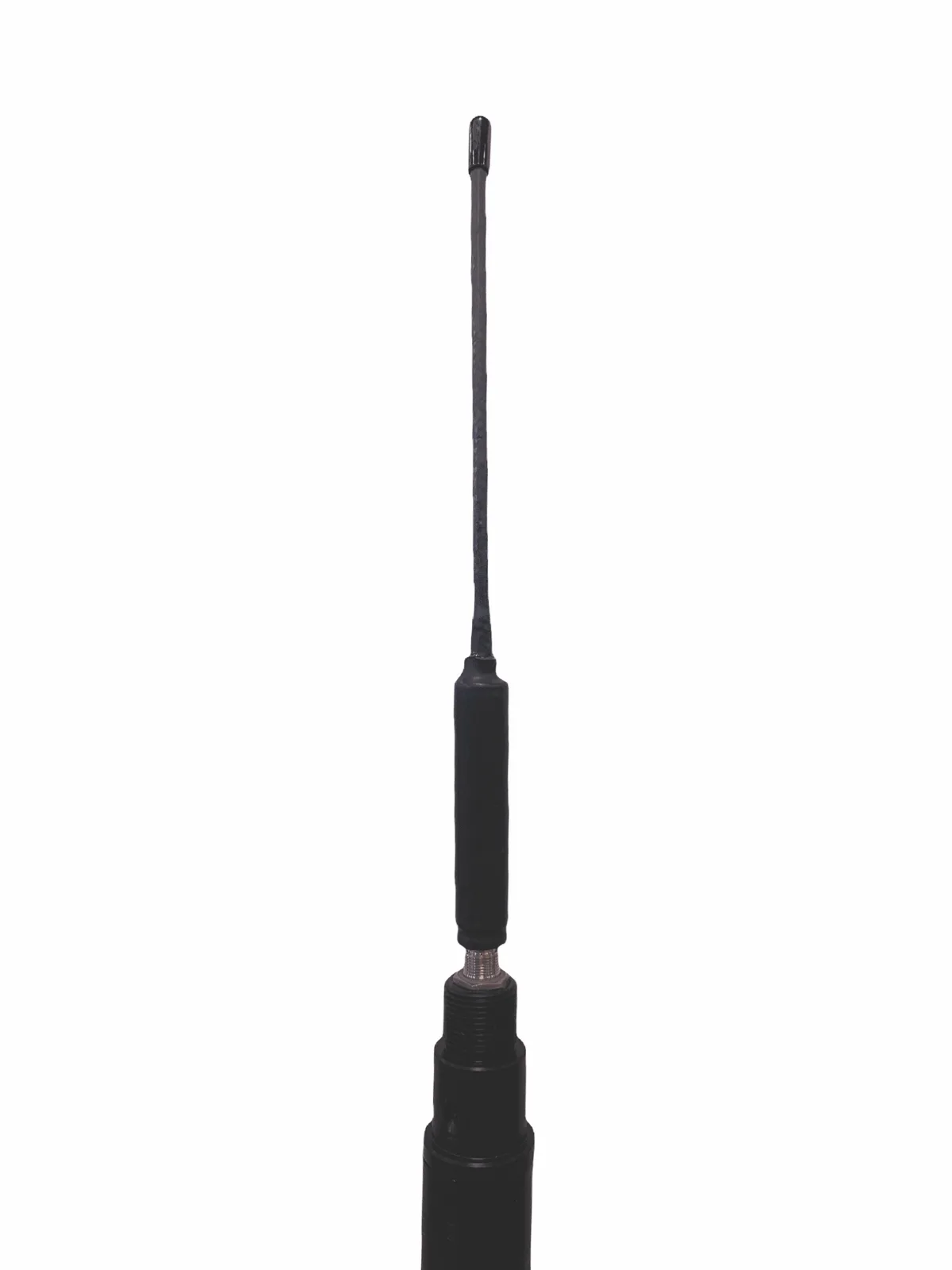

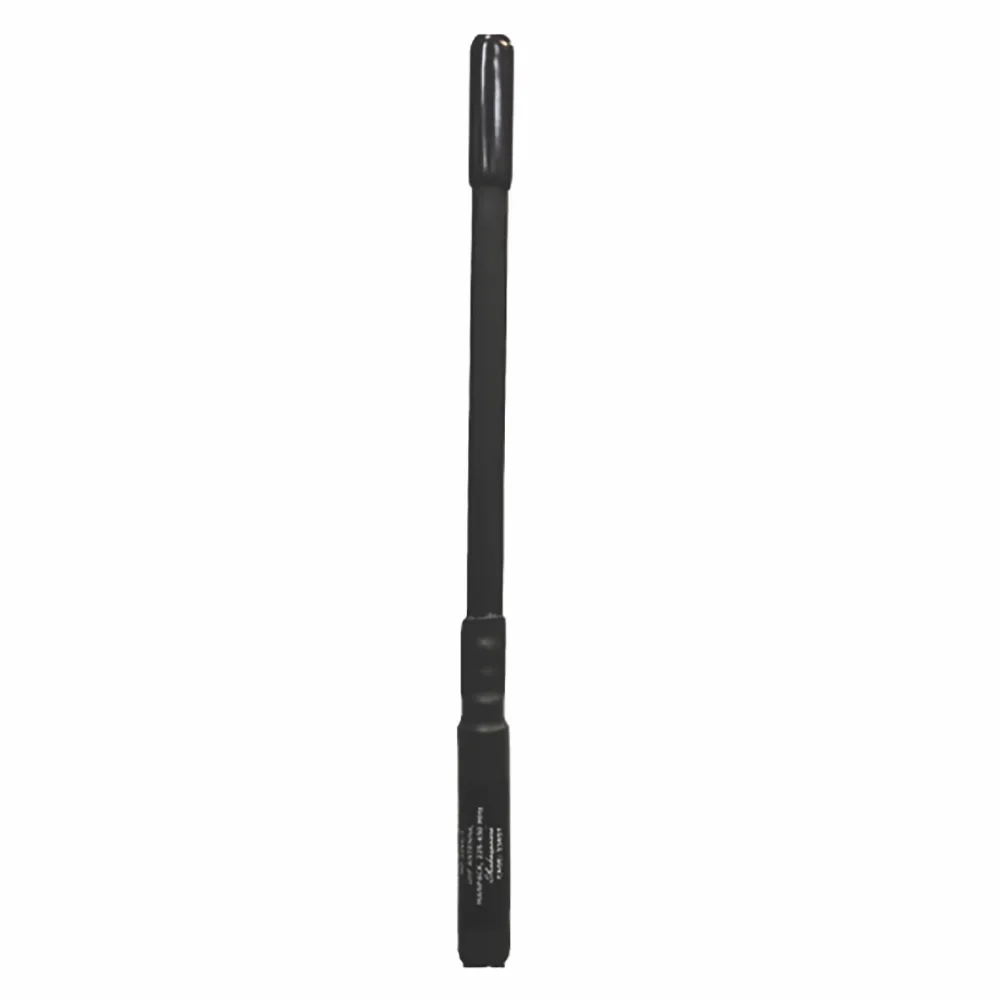

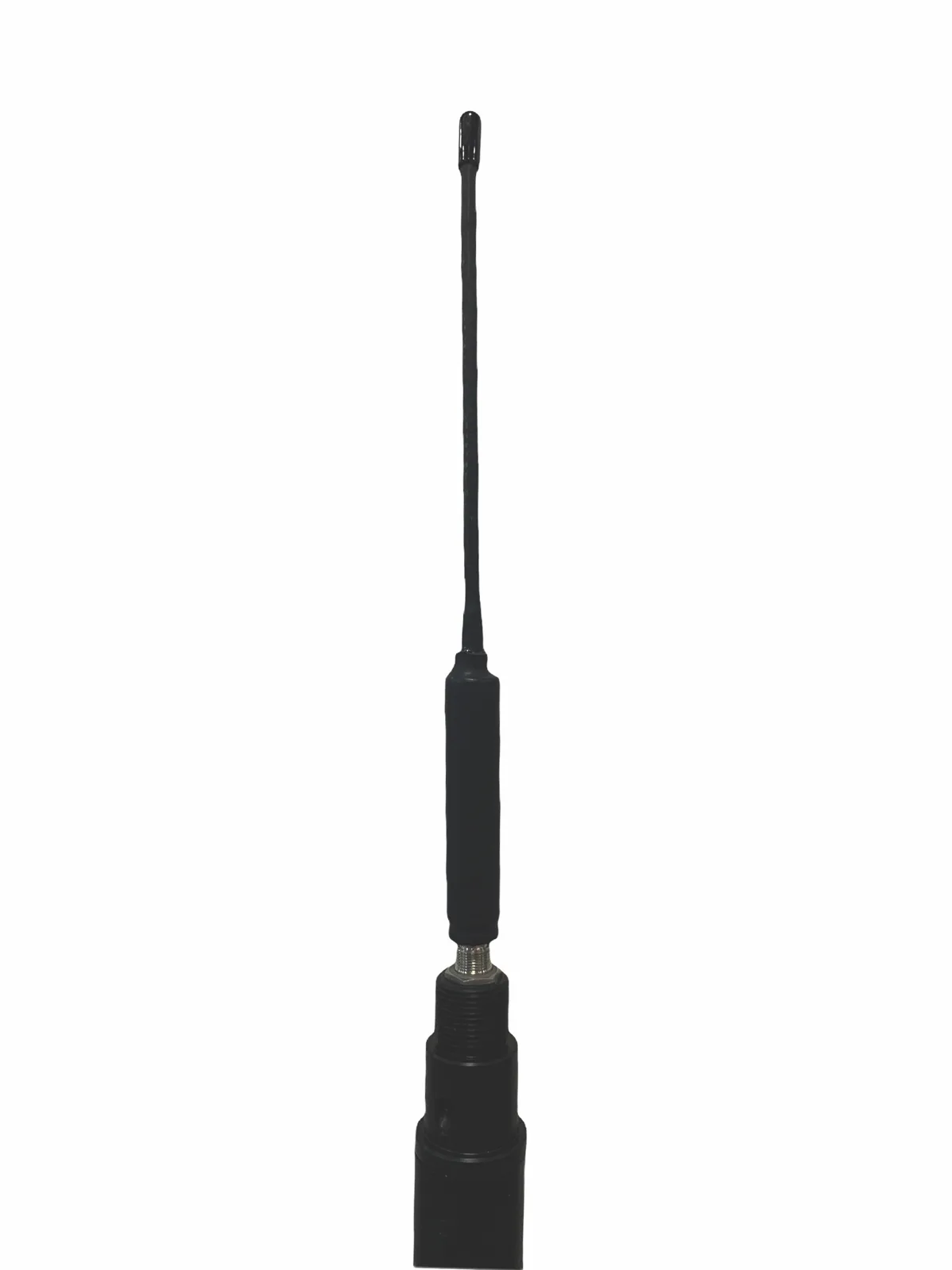

Shakespeare® MP-2245/T is a lightweight, compact UHF manpack antenna engineered for reliable communications in demanding military and tactical field environments. Designed for portability and rapid deployment, the MP-2245/T features a compact 13-inch (13.9 m) antenna and weighs less than 0.25 lbs. (0.1 kg), making it ideal for portable radio applications. Operating across a 225–450 MHz frequency range, the antenna provides omnidirectional coverage with 0 to 4 dBi gain for versatile UHF communications. – PSC-5, AN/PRC-148, AN/PRC-117
Specifications
| Frequency Range | 225 - 450 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 225 MHz |
| Polarization | Linear |
| Input Impedance | 50 OHMS Nominal |
| Power | 20 W CW |
| Connector | Type - TNC (M) |

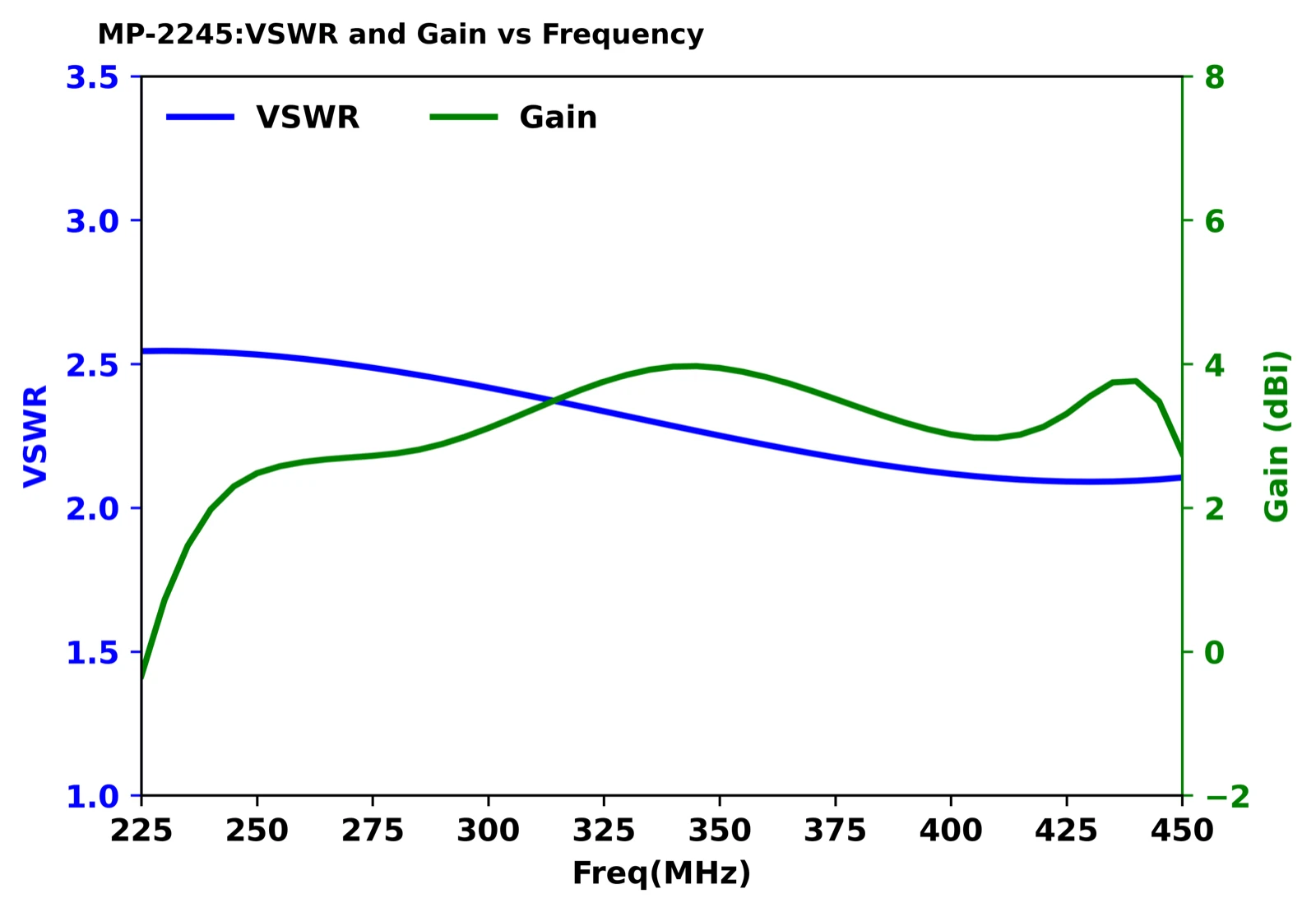

| VSWR | 2.7:1 or Less |
| Gain | 0 to 4 dBi |
| Height | 12.96" (0.3 m) |
|---|---|
| Weight | < .25 lbs. (< 0.1 kg) |
| Color | Black |
