HP-LP3512GR/S
52" (1.3 m) VHF, UHF, BROADBAND ANTENNA (Low Profile) | 30-512 MHz
- Bands
-
- Broadband
- UHF
- VHF
Overview

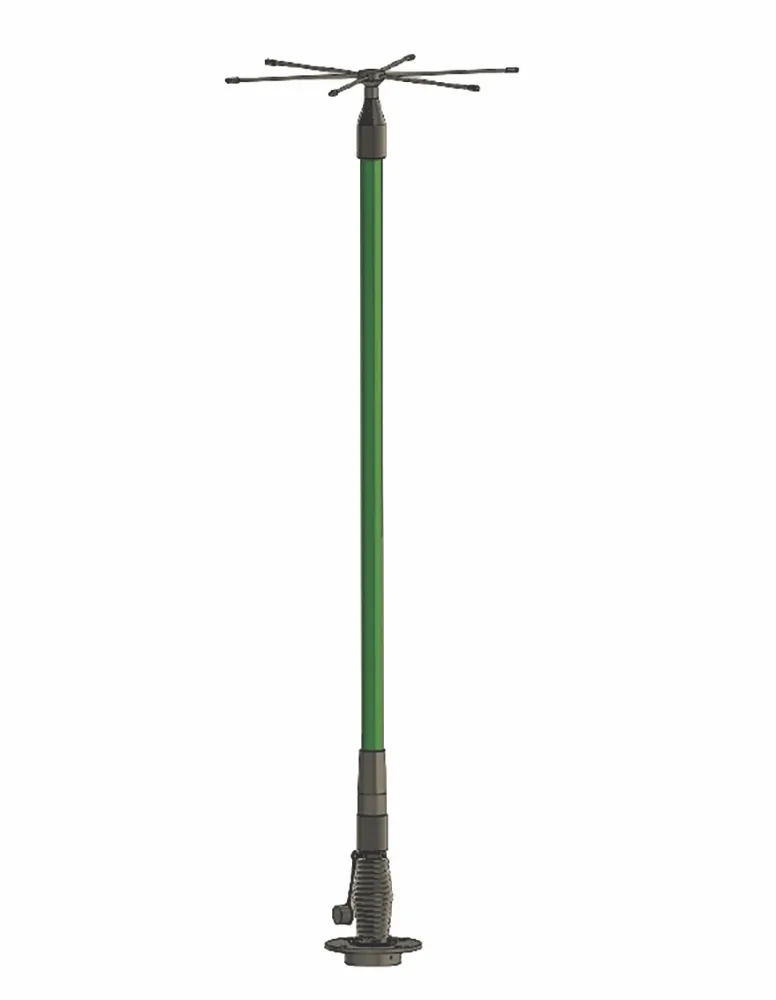

Shakespeare® HP-LP3512GR/S is a low-profile, broadband vehicular antenna engineered for reliable VHF and UHF communications in demanding military and field environments. It operates across a wide 30–512 MHz frequency range
Featuring a monopole design with a nominal 50-ohm impedance, the HP-LP3512GR/S delivers broadband performance with a VSWR of less than 3.5:1. Its compact 52-inch (1.3 m) profile is designed for vehicular installations where reduced antenna height is preferred.
Specifications
| Frequency Range | 30 - 512 MHz |
|---|---|
| Radiation Pattern | Monopole |
| Instantaneous Bandwidth | 482 MHz |
| Input Impedance | 50 OHMS Nominal |
| Power | 200 W CW |
| VSWR | < 3.5 |
| Height | 52" (1.3 m) |
|---|---|
| Weight | 9.5 lbs. (4.3 kg) |
