Vehicular Antennas

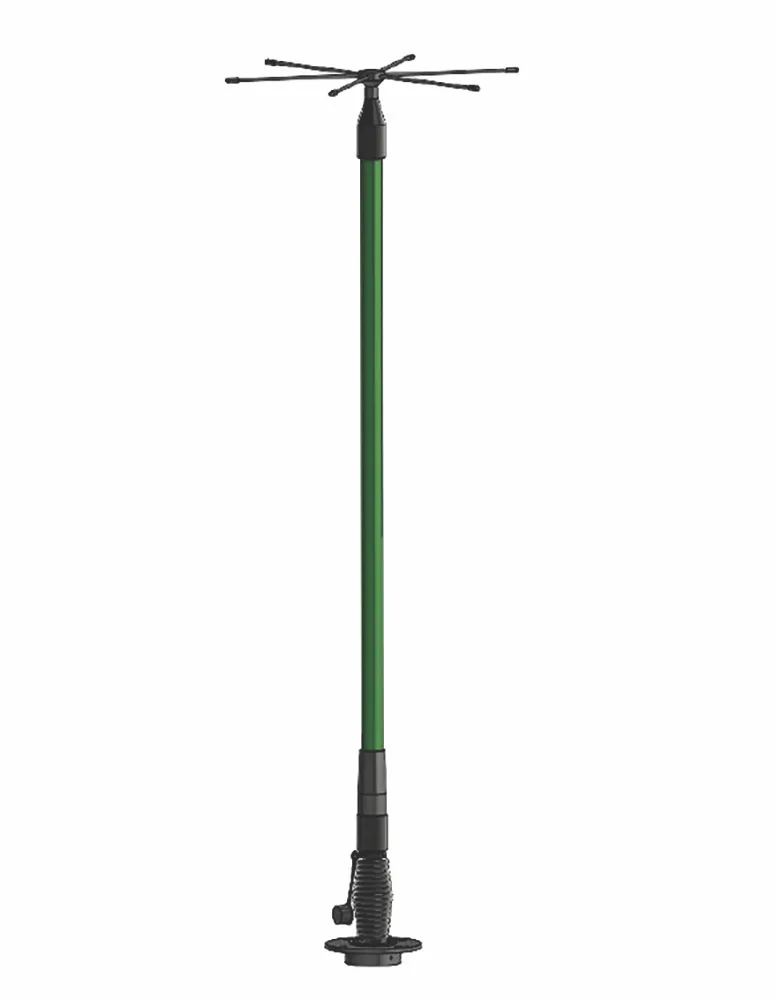

HP-LP3512/VRC
51" (1.2 m) VHF, UHF, BROADBAND ANTENNA (Low Profile)| 30-512 MHz
- Bands
-
- Broadband
- UHF
- VHF
Overview
Shakespeare® HP-LP3512/VRC is a compact, broadband VHF/UHF antenna engineered for reliable military and tactical communications across the 30–512 MHz frequency range. Engineered with Shakespeare’s patented broadband technology, this antenna provides gain comparable to the legacy AS-3900A/VRC. It provides expanded coverage for EPLRS, public safety, and commercial interoperability frequencies. Designed for high-power, multi-radio applications, the HP-LP3512/VRC supports up to 200 W RF power and offers compatibility with multiple radios using existing combiner multiplexers, without requiring tuning or operator intervention. An optional diplexer enables dual-feed operation for enhanced communication flexibility. Its compact, low-profile design reduces vertical signature while maintaining dependable performance in demanding tactical environments.
HP-LP3512/VRC meets or exceed MIL-STD-810, as well as survival in even the harshest mechnical test, the Oak Beam Impact Test.
Specifications
| Frequency Range | 30 - 512 MHz |
|---|---|
| Radiation Pattern | Monopole |
| Instantaneous Bandwidth | 482 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 200 W (50% Duty Cycle) |
| Connector | Type - N Standard |
| VSWR | Average 3.5:1 or Less |
| Gain | -6 to +9 dBi |
| Height | 51" (1.2 m) |
|---|---|
| Weight | 6 lbs. (2.7 kg) |
| Wind Rating | >100 MPH |
| Color | Green, Tan, Black |
