Vehicular Antennas

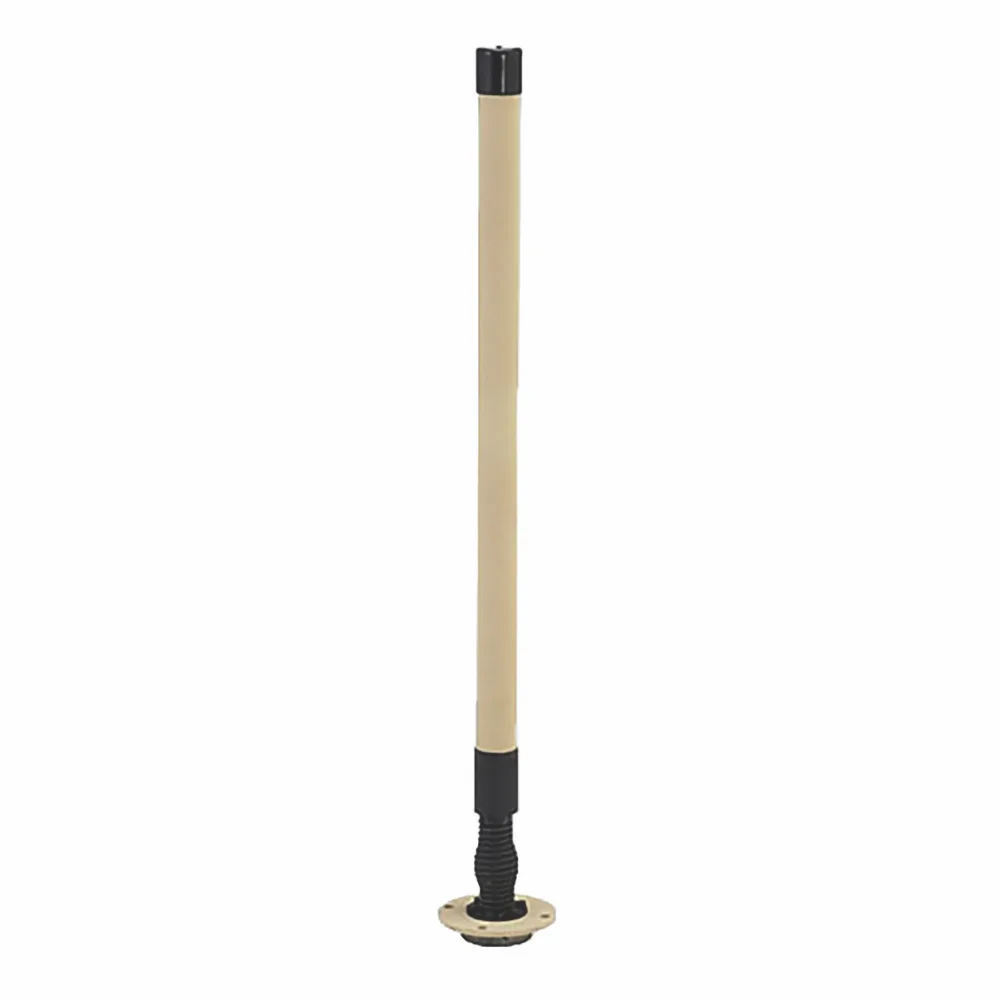

HP-5250S/VRC
HIGH-POWER VHF, UHF, BROADBAND, HG ANTENNA | 500-2500 MHz
- Bands
-
- Broadband
- UHF
- VHF
- NSN
- 5985015831823
Overview
Shakespeare® HP-5250S/VRC is a high-power broadband VHF/UHF antenna engineered for reliable military and tactical communications across the 500–2500 MHz frequency range, with a 2 GHz instantaneous bandwidth and 200 W continuous RF power rating. Designed for advanced battlefield applications utilizing high-frequency digital data transmission, this antenna features a patented radiator design that optimizes radiation pattern efficiency across a very wide bandwidth while minimizing pattern up-tilt to maintain strong signal coverage toward the horizon.

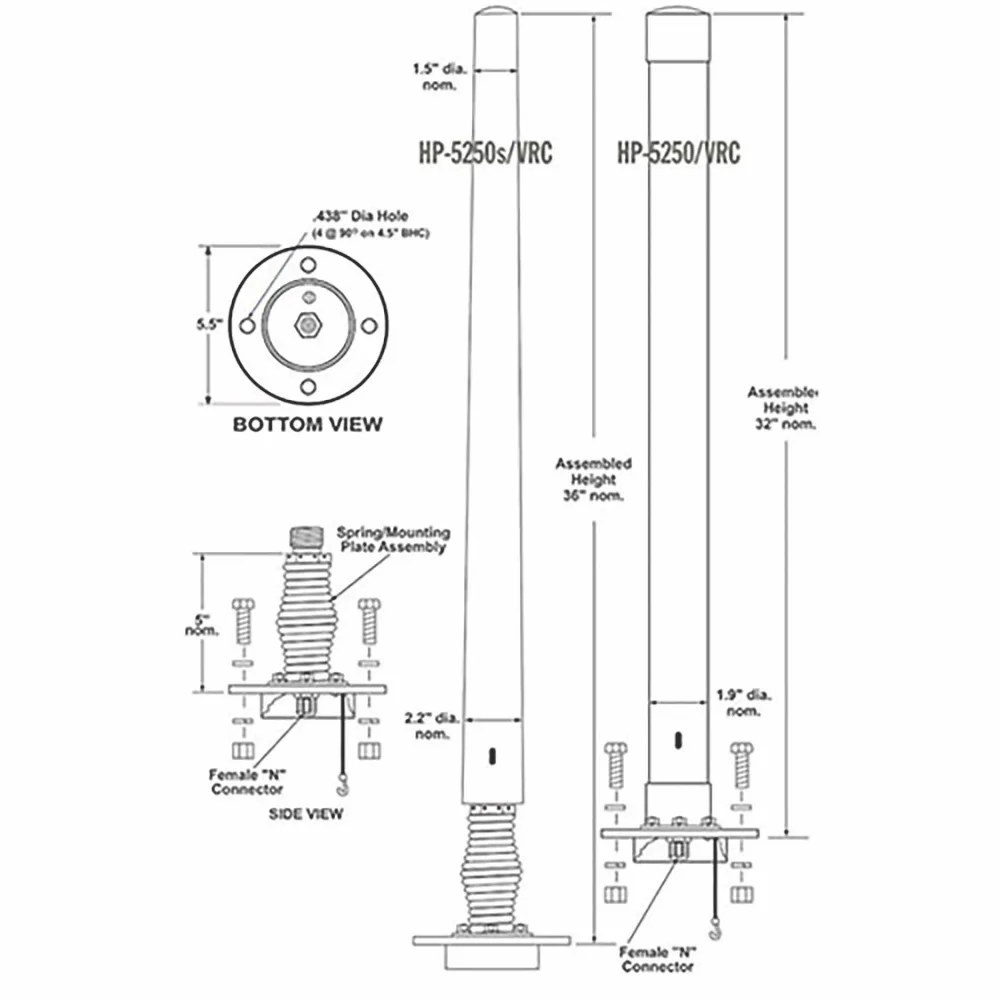

Featuring a rugged, MIL-STD-810-compliant, fiberglass composite construction, HP-5250S/VRC is built to withstand the rigors of tracked or wheeled military vehicle applications. It provides a ground-independent, low-angle radiation pattern, and fits the standard U.S. four-bolt antenna mount or spring mount.
– U.S. Patent #7142166
Specifications
| Frequency Range | 500 – 2500 MHz |
|---|---|
| Radiation Pattern | Monopole |
| Instantaneous Bandwidth | 2 GHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 200 W CW |
| Connector | Type - N Standard |
| VSWR | 3.0:1 or Less |
| Gain | -2 to +4 dBi |
| Weight | 5 lbs. (2.2 kg) |
|---|---|
| Color | Green, Tan, Black |
