Vehicular Antennas
4243A
73" (1.8 m) VHF ANTENNA (Low Profile) | 30-88 MHz
- Band
-
- VHF
- NSN
- 5985013434534
Overview

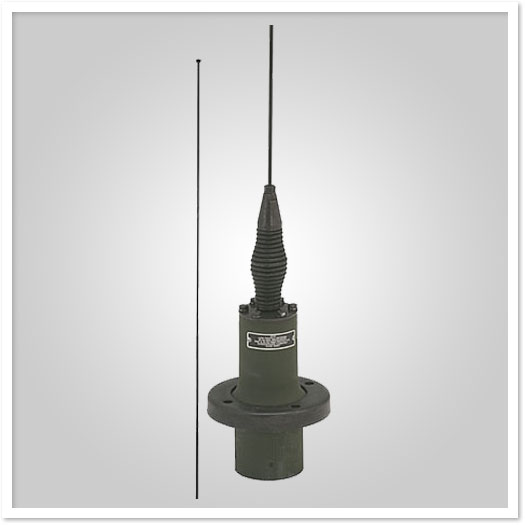

Shakespeare® 4243A is a rugged, low-profile broadband VHF antenna engineered for reliable communications in demanding military and tactical environments. Designed for vehicular applications, this monopole antenna operates across the 30–88 MHz frequency range, providing continuous broadband coverage with vertical polarization.
Specifications
| Frequency Range | 30 - 88 MHz |
|---|---|
| Radiation Pattern | Monopole |
| Instantaneous Bandwidth | 58 MHz |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 70 W CW |
| Connector | Type - BNC |
| VSWR | Average 3.5:1 or Less |
| Gain | -4 to +4 dBi |
| Height | 73" (1.8 m) |
|---|---|
| Weight | 9.5 lbs. (4.3 kg) |
| Color | Green, Tan, Black |
