Vehicular Antennas
120-55
32’ (9.7 m) HF EIGHT-SECTION STATIONARY ANTENNA w/ 120-28 | 2-30 MHz
- Band
-
- HF
- NSN
- 5985008466442
Overview
Shakespeare®’s 120-Series is a versatile, transportable HF antenna system engineered for reliable military and field communications. Operating across the 2–30 MHz frequency range (with an external antenna tuner), the system accommodates a variety of antenna heights, mounting options, and configurations for vehicular and stationary applications.

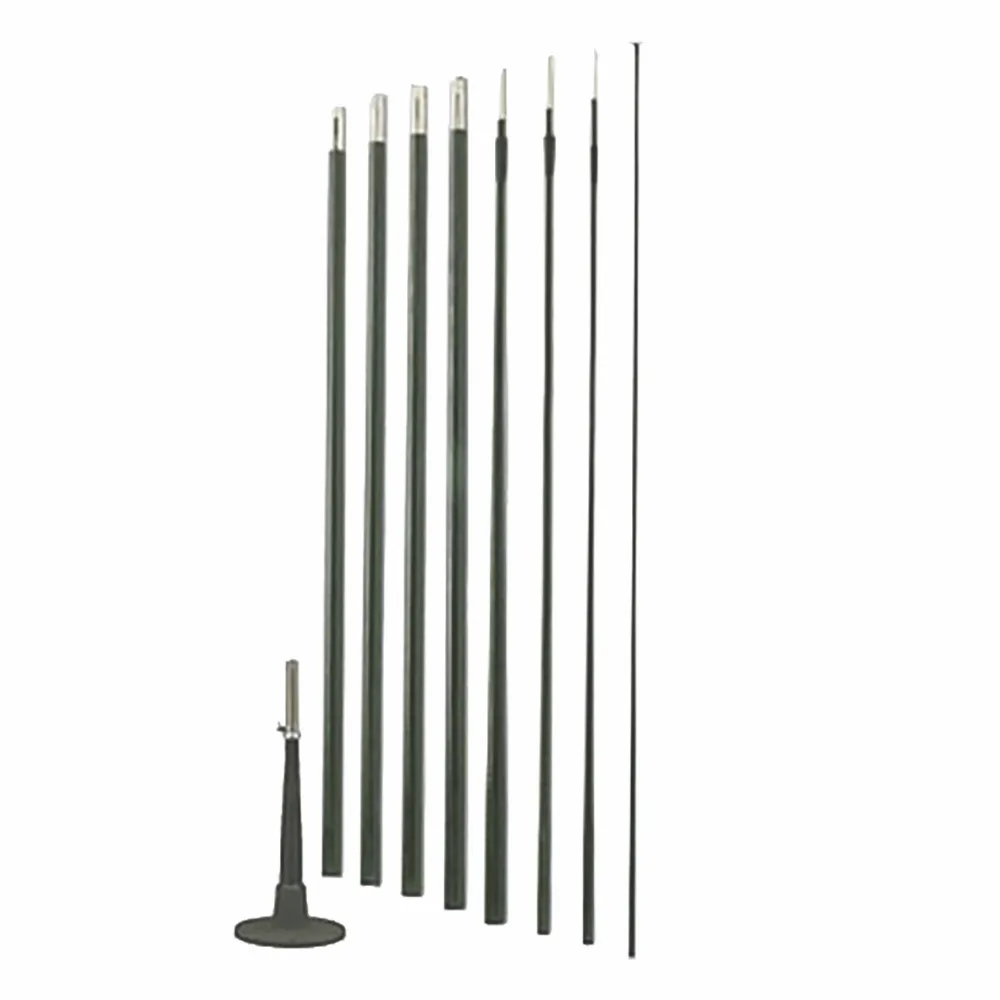

Shakespeare® 120-55 is a durable, vehicular HF antenna with 120-28 base. It operates across the 2–30 MHz frequency range with an external antenna tuner. Constructed from durable fiberglass, this 32 ft (9.7 m) antenna consists of eight 4 ft (1.2 m) sections for convenient transport and flexible deployment. Shakespeare’s exclusive taper-rolled thread ferrules provide mechanical strength and positive electrical contact, even when the antenna flexes. Rated for up to 1 kW of power, 120-55 features vertical polarization and an omnidirectional radiation pattern to support broad-area communications. AT-1011/U
Specifications
| Frequency Range | 2 - 30 MHz |
|---|---|
| Radiation Pattern | Omnidirectional |
| Instantaneous Bandwidth | 28 MHz (Needs Tuner) |
| Polarization | Vertical |
| Input Impedance | 50 OHMS Nominal |
| Power | 1 KW |
| VSWR | Based on Radio System |
| Gain | Based on Radio System |
| Height | 32’ (9.7 m) sections - 20.5" (0.5 m) base |
|---|---|
| Weight | 30 lbs. (13.6 kg) nominal |
| Wind Rating | Up to 35 MPH (unguyed) Up to 90 MPH (guyed) - depends on soil conditions |
| Color | Green, Tan |
